ADVFC32KNZ

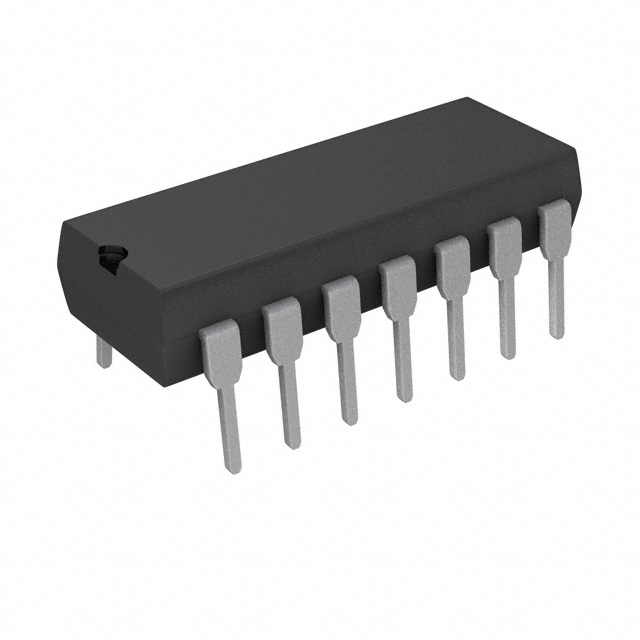

ANALOG DEVICES  ADVFC32KNZ  电压频率转换器, 500 kHz, 0Hz 至 500kHz, 0.5 %, ± 9V 至 ± 18V, DIP, 14 引脚

电压/频率转换器，Analog Devices

这种经济电压至频率转换器具有最低电源要求，同时可提供宽满刻度频率范围。 具有出色的温度特性和稳定性。

欧时:
电压/频率转换器，Analog Devices这种经济电压至频率转换器具有最低电源要求，同时可提供宽满刻度频率范围。 具有出色的温度特性和稳定性。

得捷:
IC F/V & V/F CONV 500KHZ 14DIP

立创商城:
ADVFC32KNZ

e络盟:
电压频率转换器, 500 kHz, 0Hz 至 500kHz, 0.5 %, ± 9V 至 ± 18V, DIP, 14 引脚

艾睿:
VFC/FVC Non-Sync 500kHz 14-Pin PDIP N Tube

安富利:
The industry standard ADVFC32 is a low cost monolithic voltage-to-frequency V/F converter or frequency-to-voltage F/V converter with good linearity 0.01% max error at 10 kHz and operating frequency up to 0.5 MHz. In the V/F configuration, positive or negative input voltages or currents can be converted to a proportional frequency using only a few external components. For F/V conversion, the same components are used with a simple biasing network to accommodate a wide range of input logic levels.TTL or CMOS compatibility is achieved in the V/F operating mode using an open collector frequency output. The pull-up resistor can be connected to voltages up to 30 volts, or to 15 V or 5 V for conventional CMOS or TTL logic levels. This resistor should be chosen to limit current through the open collector output to 8 mA. A larger resistance can be used if driving a high impedance load.Input offset drift is only 3 ppm of full scale per °C, and fullscale calibration drift is held to a maximum of 100 ppm/°C ADVFC32BH due to a low T.C. Zener diode.The ADVFC32 is available in commercial, industrial, and extended temperature grades. The commercial grade is packaged in a 14-lead plastic DIP while the two wider temperature range parts are packaged in hermetically sealed 10-lead cans

Chip1Stop:
VFC/FVC Non-Sync 500kHz 14-Pin PDIP N Tube

Verical:
VFC/FVC Non-Sync 500kHz 14-Pin PDIP N Tube

Newark:
Voltage to Frequency Converter, 500 kHz, 0Hz to 500kHz, 0.5 %, ± 9V to ± 18V, DIP, 14 Pins

Win Source:
IC CONV V/F F/V 0-70DEGC 14DIP
