AD7612BSTZ

16位750 kSPS时，单极/双极性可编程输入的PulSAR ADC 16-Bit, 750 kSPS, Unipolar/Bipolar Programmable Input PulSAR ADC

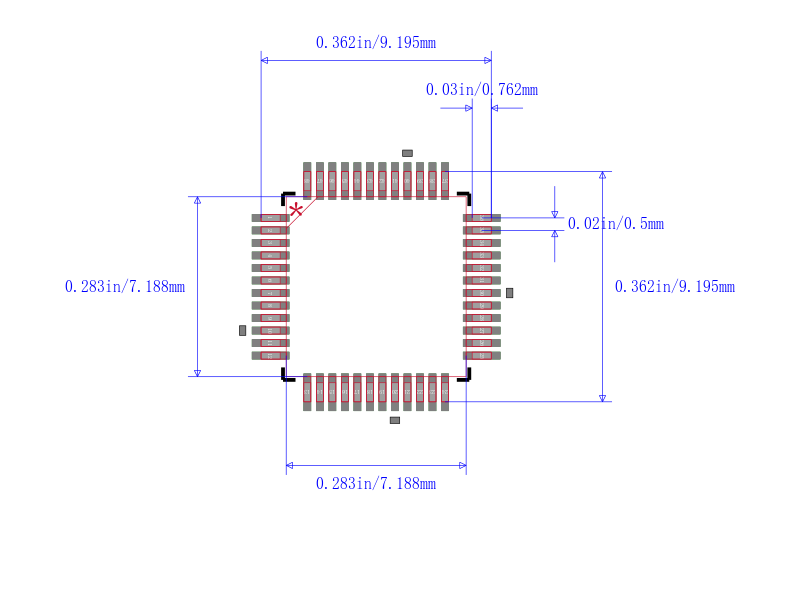

Product Details

The AD7612 is a 16-bit charge redistribution successive approximation register SAR, architecture analog-to-digital converter ADC fabricated on Analog Devices, Inc."s _i_CMOS high voltage process. The device is configured through hardware or via a dedicated write only serial configuration port for input range and operating mode. The AD7612 contains a high speed 16-bit sampling ADC, an internal conversion clock, an internal reference and buffer, error correction circuits, and both serial and parallel system interface ports. A falling edge on CNVST samples the analog input on IN+ with respect to a ground sense, IN–. The AD7612 features four different analog input ranges and three different sampling modes: warp mode for the fastest throughput, normal mode for the fastest asynchronous throughput, and impulse mode where power consumption is scaled linearly with throughput. Operation is specified from −40°C to +85°C.

**Product Highlights**

1. Programmable input range and mode selection. Pins or serial port for selecting input range/mode select.

2. Fast throughput. In warp mode, the AD7612 is 750 kSPS.

3. Superior Linearity. No missing 16-bit code. ±1.5 LSB max INL.

4. Internal Reference. 5 V internal reference with a typical drift of ±3 ppm/°C and an on-chip temperature sensor.

5. Serial or Parallel Interface. Versatile parallel 16- or 8-bit bus or 2-wire serial interface arrangement compatible with 3.3 V or 5 V logic.

**Applications**

.

Process control

.

Medical instruments

.

High speed data acquisition

.

Digital signal processing

.

Instrumentation

.

Spectrum analysis

.

ATE

### Features and Benefits

.

Multiple pins/software programmable input ranges: 5 V, 10 V, ±5 V, ±10 V

.

Pins or serial SPI®-compatible input ranges/mode selection

.

Throughput

750 kSPS warp mode

600 kSPS normal mode

500 kSPS impulse mode

.

INL: ±0.75 LSB typical, ±1.5 LSB maximum ±23 ppm of FSR

.

16-bit resolution with no missing codes

.

SNR: 92 minimum 5 V @ 2 kHz, 94 dB typical ±10 V @ 2 kHz

|

.

THD: −107 dB typical

.

_i_CMOS™ process technology

.

5 V internal reference: typical drift 3 ppm/°C; TEMP output

.

No pipeline delay SAR architecture

.

Parallel 16- or 8-bit bus and serial 5 V/3.3 V interface

.

SPI-/QSPI™-/MICROWIRE™-/DSP-compatible

---|---
