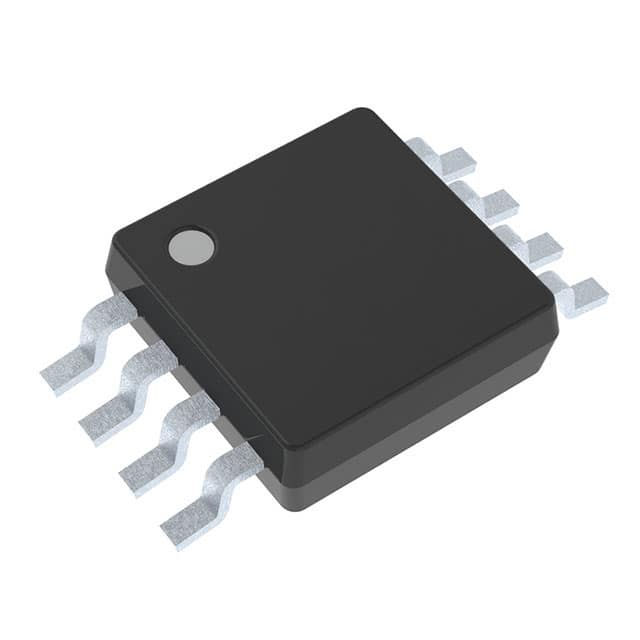

AD7478AARMZ-REEL7

ADC Single SAR 1.2MSPS 8Bit Serial 8Pin MSOP T/R

Product Details

The AD7476A/AD7477A/AD7478A are 12-bit, 10-bit, and 8-bit high speed, low power, successive-approximation analog-todigital converters ADCs, respectively. The parts operate from a single 2.35 V to 5.25 V power supply and feature throughput rates up to 1 MSPS. The parts contain a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 13 MHz. The conversion process and data acquisition are controlled using CS and the serial clock, allowing the devices to interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS, and the conversion is also initiated at this point. There are no pipeline delays associated with the parts. The AD7476A/AD7477A/ AD7478A use advanced design techniques to achieve low power dissipation at high throughput rates. The reference for the part is taken internally from VDD to allow the widest dynamic input range to the ADC. Thus, the analog input range for the part is 0 V to VDD. The conversion rate is determined by the SCLK.

Product Highlights

1. First 12-/10-/8-bit ADCs in a SC70 package.

2. High throughput with low power consumption.

3. Flexible power/serial clock speed management. The conversion rate is determined by the serial clock, allowing the conversion time to be reduced through the serial clock speed increase. This allows the average power consumption to be reduced when a power-down mode is used while not converting. The parts also feature a power-down mode to maximize power efficiency at lower throughput rates. Current consumption is 1 µA maximum and 50 nA typically when in power-down mode.

4. Reference derived from the power supply.

5. No pipeline delay. The parts feature a standard successive approximation ADC with accurate control of the sampling instant via a CS input and once-off conversion control.

Applications

.

Battery-powered systems

\- Personal digital assistants

\- Medical instruments

\- Mobile communications

.

Instrumentation and control systems

.

Data acquisition systems

.

High speed modems

.

Optical sensors

### Features and Benefits

.

Fast throughput rate: 1 MSPS

.

Specified for VDD of 2.35 V to 5.25 V

.

Low power

.

3.6 mW at 1 MSPS with 3 V supplies

.

12.5 mW at 1 MSPS with 5 V supplies

.

Wide input bandwidth

.

71 dB SNR at 100 kHz input frequency

.

Flexible power/serial clock speed management

.

No pipeline delays

.

High speed serial interface

.

SPI/QSPI/MICROWIRE/DSP compatible

.

Standby mode: 1 µA maximum

.

6-lead SC70 package

.

8-lead MSOP

.

Qualified for automotive applications
