ANALOG DEVICES ADA4937-2YCPZ-R7 差分放大器, 超低失真, 2 放大器, 500 µV, 1.9 GHz, -40 °C, 105 °C
Product Details
The ADA4937-1 / ADA4937-2 are low noise, ultralow distortion, high speed differential amplifiers. They are an ideal choice for driving high performance ADCs with resolutions up to 16 bits from dc to 100 MHz. The adjustable level of the output common mode allows the ADA4937-1/ADA4937-2 to match the input of the ADC. The internal common-mode feedback loop also provides exceptional output balance as well as suppression of even-order harmonic distortion products.
With the ADA4937-1 / ADA4937-2, differential gain configurations are easily realized with a simple external feedback network of four resistors that determine the closed-loop gain of the amplifier.
The ADA4937-1 / ADA4937-2 are fabricated using Analog Devices, Inc., proprietary silicon-germanium SiGe, complementary bipolar process, enabling them to achieve very low levels of distortion with an input voltage noise of only 2.2 nV/√Hz. The low dc offset and excellent dynamic performance of the ADA4937-1/ADA4937-2 make them well-suited for a wide variety of data acquisition and signal processing applications.

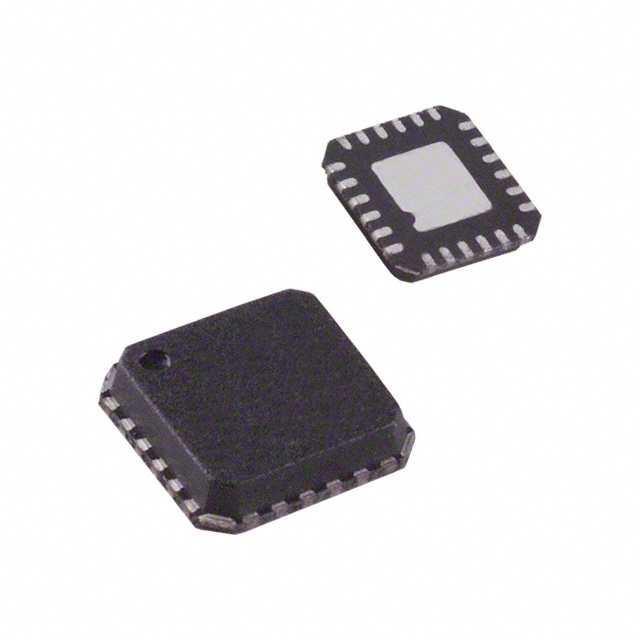

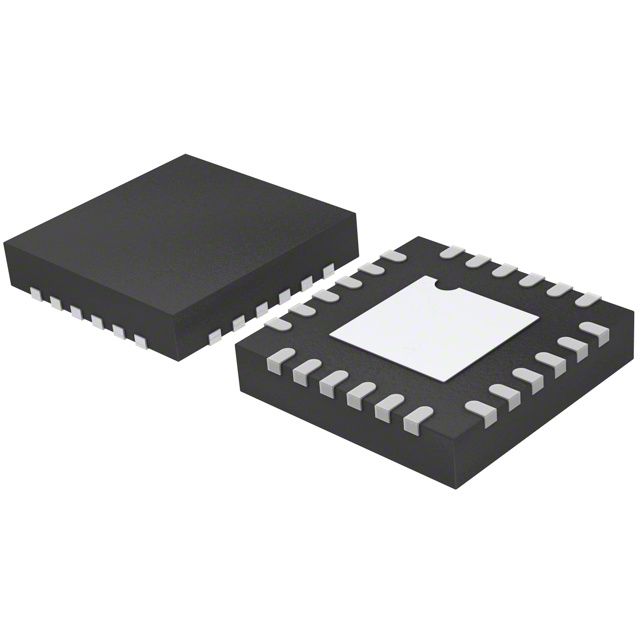

The ADA4937-1 / ADA4937-2 are available in a Pb-free, 3 mm × 3 mm, 16-lead LFCSP ADA4937-1, single or a Pb-free, 4 mm × 4 mm, 24-lead LFCSP ADA4937-2, dual. The pinout has been optimized to facilitate PCB layout and minimize distortion. The ADA4937-1 / ADA4937-2 are specified to operate over the automotive −40°C to +105°C temperature range and between 3.3 V and 5 V supplies.
**Applications**
* ADC drivers
* Single-ended-to-differential converters
* IF and baseband gain blocks
* Differential buffers
* Line drivers
### Features and Benefits
输出电流 100mA @5V
供电电流 39.5 mA
通道数 2
针脚数 24
共模抑制比 69 dB
带宽 1.9 GHz
输入补偿电压 500 µV
输入偏置电流 30000 nA
工作温度Max 105 ℃
工作温度Min -40 ℃
共模抑制比Min 60dB ~ 75dB
电源电压 3V ~ 5.25V
电源电压Max 5V ~ 7V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 24

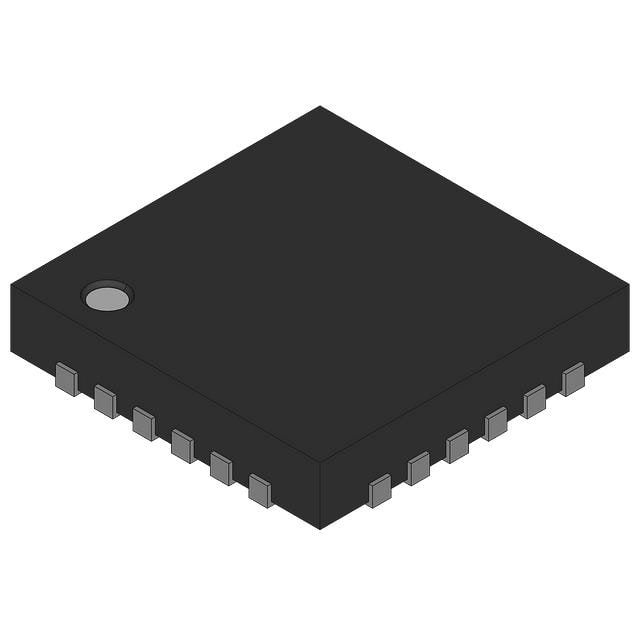

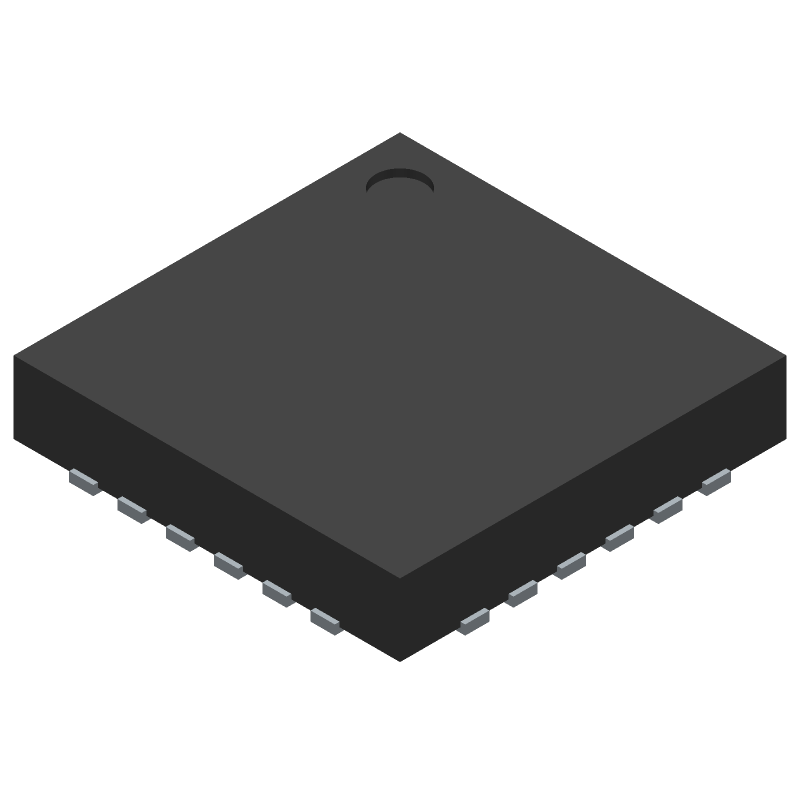

封装 LFCSP-24
高度 0.83 mm
封装 LFCSP-24
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 数据采集
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADA4937-2YCPZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADA4937-2YCPZ-R2 亚德诺 | 类似代替 | ADA4937-2YCPZ-R7和ADA4937-2YCPZ-R2的区别 |
