超低失真IF双通道VGA Ultralow Distortion IF Dual VGA
Product Details
The AD8376 is a dual channel, digitally controlled, variable gain wide bandwidth amplifier that provides precise gain control, high IP3, and low noise figure. The excellent distortion performance and high signal bandwidth make the AD8376 an excellent gain control device for a variety of receiver applications.
Using an advanced high speed SiGe process and incorporating proprietary distortion cancellation techniques, the AD8376 achieves 50 dBm output IP3 at 200 MHz.
The AD8376 provides a broad 24 dB gain range with 1 dB resolution. The gain of each channel is adjusted through dedicated 5-pin control interfaces and can be driven using standard TTL levels. The open-collector outputs provide a flexible interface, allowing the overall signal gain to be set by the loading impedance. Thus, the signal voltage gain is directly proportional to the load.
Each channel of the AD8376 can be individually powered on by applying the appropriate logic level to the ENBA and ENBB power enable pins. The quiescent current of the AD8376 is typically 130 mA per channel. When powered down, the AD8376 consumes less than 5 mA and offers excellent input-to-output isolation, lower than −50 dB at 200 MHz.

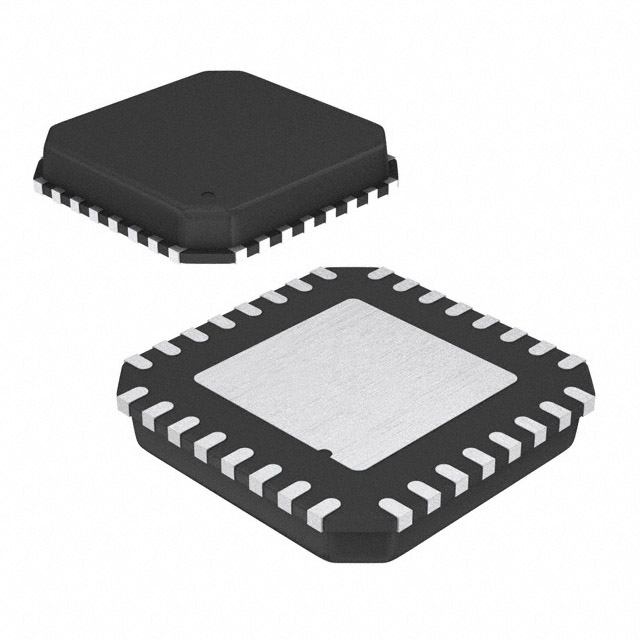

Fabricated on an Analog Devices, Inc., high speed SiGe process, the AD8376 is supplied in a compact, thermally enhanced, 5 mm × 5mm 32-lead LFCSP package and operates over the temperature range of −40°C to +85°C.
**Applications**
* Differential ADC drivers
* Main and diversity IF sampling receivers
* Wideband multichannel receivers
* Instrumentation
Data Sheet, Rev. 0, 8/07
### Features and Benefits
供电电流 250 mA
电路数 2
通道数 2
耗散功率 1.6 W
共模抑制比 45.5 dB
输入偏置电流 900 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 700 MHz
增益带宽 45.5 dB
耗散功率Max 1600 mW
电源电压 4.5V ~ 5.5V
电源电压Max 5V ~ 7V
安装方式 Surface Mount

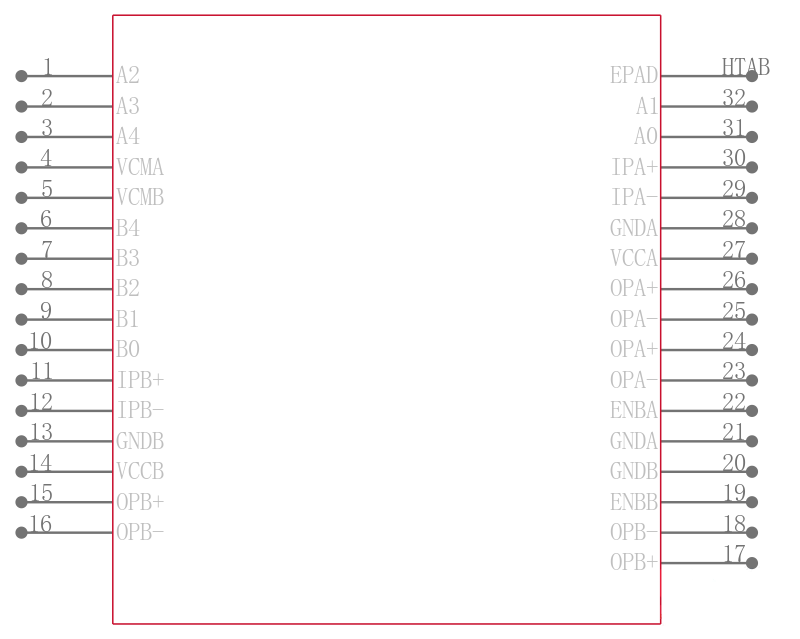

引脚数 32

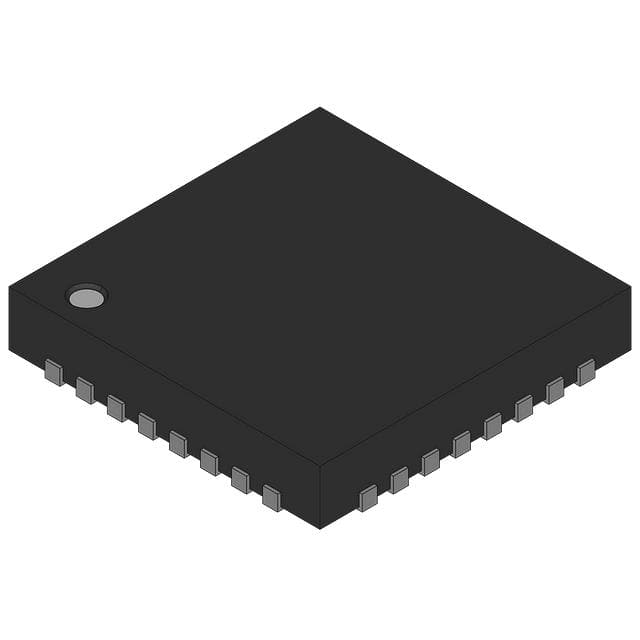

封装 LFCSP-32
长度 5 mm
宽度 5 mm
高度 0.83 mm
封装 LFCSP-32
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8376ACPZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD8376ACPZ-WP 亚德诺 | 完全替代 | AD8376ACPZ-R7和AD8376ACPZ-WP的区别 |
