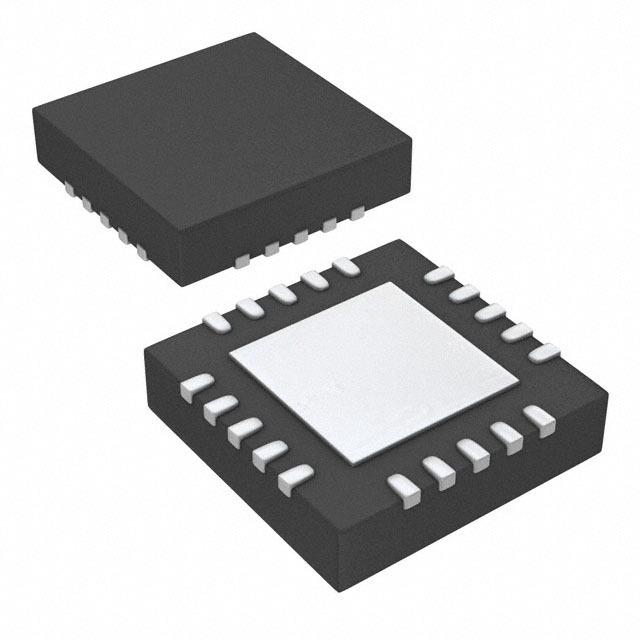

ADL5365ACPZ-R7图片1

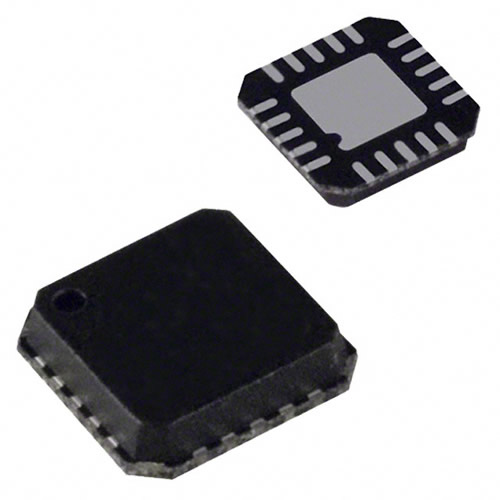

ADL5365ACPZ-R7图片2
ADL5365ACPZ-R7图片3
ADL5365ACPZ-R7图片4
ADL5365ACPZ-R7图片5
ADL5365ACPZ-R7图片6
ADL5365ACPZ-R7图片7
ADL5365ACPZ-R7图片8
ADL5365ACPZ-R7图片9
ADL5365ACPZ-R7图片10
ADL5365ACPZ-R7概述

1200 MHz至2500 MHz的平衡混频器, LO缓冲器和RF巴伦 1200 MHz to 2500 MHz Balanced Mixer, LO Buffer and RF Balun

Product Details

The ADL5365 uses a highly linear, doubly balanced passive mixer core along with integrated RF and LO balancing circuitry to allow for single-ended operation. The ADL5365 incorporates an RF balun, allowing for optimal performance over a 1200 MHz to 2500 MHz RF input frequency range using low-side LO injection for RF frequencies from 1700 MHz to 2500 MHz and high-side injection for frequencies from 1200 MHz to 1700 MHz. The balanced passive mixer arrangement provides good LO to RF leakage, typically better than −30 dBm, and excellent intermodulation performance. The balanced mixer core also provides extremely high input linearity, allowing the device to be used in demanding cellular applications where in-band blocking signals may otherwise result in the degradation of dynamic performance.

The ADL5365 provides two switched LO paths that can be used in test driven development TDD applications where it is desirable to rapidly switch between two local oscillators. LO current can be externally set using a resistor to minimize dc current commensurate with the desired level of performance. For low voltage applications, the ADL5365 is capable of operation at voltages down to 3.3 V with substantially reduced current. Under low voltage operation, an additional logic pin is provided to power down <200 µA the circuit when desired.

The ADL5365 is fabricated using a BiCMOS high performance IC process. The device is available in a 5 mm × 5 mm, 20-lead LFCSP, and operates over a −40°C to +85°C temperature range. An evaluation board is also available.

Applications

.
Cellular base station receivers
.
Transmit observation receivers
.
Radio link downconverters

### Features and Benefits

.
RF frequency range of 1200 MHz to 2500 MHz
.
IF frequency range of dc to 450 MHz
.
Power conversion loss: 7.3 dB
.
SSB noise figure of 8.3 dB
.
SSB noise figure with 5 dBm blocker of 18.5 dB
.
Input IP3 of 36 dBm
.
Typical LO drive of 0 dBm
.
Single-ended, 50 Ω RF and LO input ports
.
High isolation SPDT LO input switch
.
Single-supply operation: 3.3 V to 5 V
.
Exposed paddle 5 mm × 5 mm, 20-lead LFCSP
.
1500 V HBM/500 V FICDM ESD performance
ADL5365ACPZ-R7中文资料参数规格
技术参数

频率 1.2GHz ~ 2.5GHz

电源电压DC 3.30V min

供电电流 95 mA

耗散功率 1.2 W

增益 7.3 dB

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 1200 mW

电源电压 3.3V ~ 5V

电源电压Max 5 V

电源电压Min 3.3 V

封装参数

安装方式 Surface Mount

引脚数 20

封装 LFCSP-20

外形尺寸

高度 0.84 mm

封装 LFCSP-20

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 5A991.b

数据手册

ADL5365ACPZ-R7引脚图与封装图
ADL5365ACPZ-R7引脚图
ADL5365ACPZ-R7封装图
ADL5365ACPZ-R7电路图
ADL5365ACPZ-R7封装焊盘图
