ADG509AKN

4 x 1多路复用器

GENERAL DESCRIPTION

The ADG508A and ADG509A are CMOS monolithic analog multiplexers with eight channels and dual four channels, respectively. The ADG508A switches one of eight inputs to a common output, depending on the state of three binary addresses and an enable input. The ADG509A switches one of four differential inputs to a common differential output, depending on the state of two binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic-compatible digital inputs.

FEATURES

44 V supply maximum rating

VSSto VDDanalog signal range

Single-/dual-supply specifications

Wide supply range: 10.8 V to 16.5 V

Extended plastic temperature range: −40°C to +85°C

Low power dissipation: 28 mW maximum

Low leakage: 20 pA typical

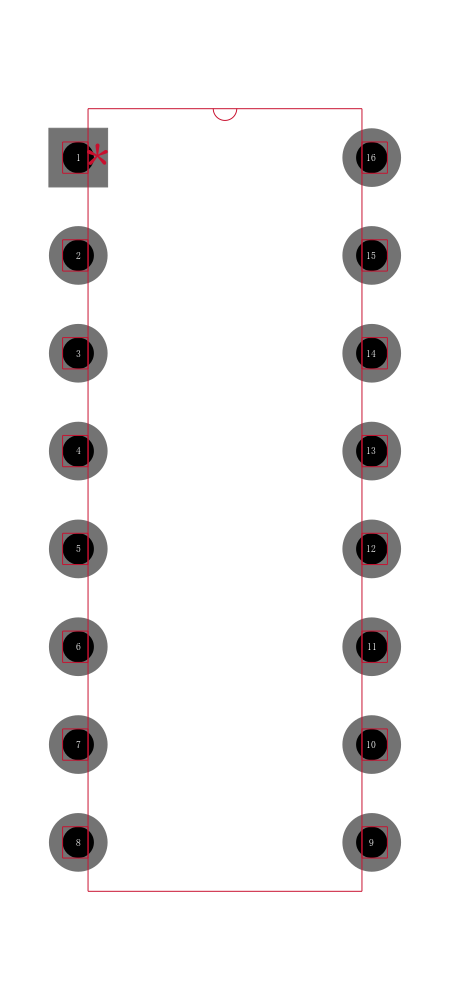

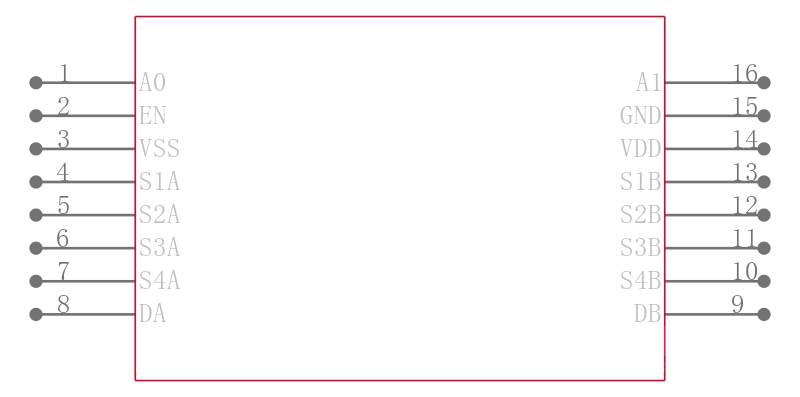

Available in 16-lead DIP/SOIC and 20-lead PLCC/LCC packages

Superior alternative to DG508A, HI-508, DG509A, HI-509
