TO-220FL N-CH 75V 9A
General Description
The AOTF474/L uses a robust technology that is designed to provide efficient and reliable power conversion even in the most demanding applications, including motor control. With low RDSON and excellent thermal capability this device is appropriate for high current switching and can endure adverse operating conditions.
Product Summary
VDS 75V
ID_TO220 at VGS=10V 127A
ID_TO220FL at VGS=10V 47A
RDSON at VGS=10V < 11.3mΩ
得捷:
MOSFET N-CH 75V 9A/47A TO220FL
艾睿:
Trans MOSFET N-CH 75V 9A 3-Pin3+Tab TO-220FL
TME:

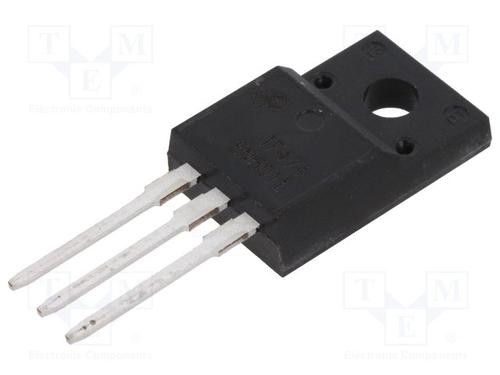

Transistor: N-MOSFET; unipolar; 75V; 33A; 29W; TO220F
Win Source:
MOSFET N-CH 75V 9A TO220FL
额定功率 29 W
极性 N-CH
耗散功率 1.9W Ta, 57.5W Tc
漏源极电压Vds 75 V
连续漏极电流Ids 9A
上升时间 34 ns
输入电容Ciss 3370pF @30VVds
额定功率Max 1.9 W
下降时间 4.5 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 1.9W Ta, 57.5W Tc
安装方式 Through Hole
引脚数 3
封装 TO-220-3
封装 TO-220-3
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
