AD8107ASTZ

260兆赫， 16 】 5缓冲式视频交叉点开关 260 MHz, 16 】 5 Buffered Video Crosspoint Switches

Product Details

The AD8106 and AD8107 are high speed, 16 × 5 video crosspoint switch matrices. They offer a −3 dB signal bandwidth greater than 260 MHz, and channel switch times of less than 25 ns with 1% settling. With −78 dB of crosstalk and −97 dB isolation at 5 MHz, the AD8106/AD8107 are useful in many high speed applications. The differential gain and differential phase of greater than 0.02% and 0.02° respectively, along with 0.1 dB flatness out to 60 MHz, make the AD8106/AD8107 ideal for video signal switching.

The AD8106 and AD8107 include five independent output buffers that can be placed into a high impedance state for paralleling crosspoint outputs, preventing off channels from loading the output bus. The AD8106 has a gain of 1, while the AD8107 offers a gain of 2. Both operate on voltage supplies of ±5 V while consuming only 30 mA of idle current. The channel switching is performed via a parallel control, allowing updating of an individual output without reprogramming the entire array.

The AD8106/AD8107 are offered in an 80-lead LQFP and are available over the extended industrial temperature range of −40°C to +85°C.

Applications

.

Routing of high speed signals including:

.

Composite video NTSC, PAL, S, SECAM

.

Component video YUV, RGB

.

Compressed video MPEG, Wavelet

.

3-level digital video HDB3

### Features and Benefits

.

16 × 5 high speed, nonblocking switch arrays: G = 2

.

Pin compatible with AD8110/AD8111, 16 × 8 switch arrays

.

For a 16 × 16 array, see AD8114/AD8115

.

For a 16 x 8 array, see AD8110/AD8111

.

Complete solution

.

Buffered inputs

.

Five output amplifiers

.

Drives 150 Ω loads

.

Excellent video performance

.

60 MHz 0.1 dB gain flatness

.

0.02% differential gain error RL = 150 Ω

.

0.02° differential phase error RL = 150 Ω

.

Excellent ac performance

.

−3 dB bandwidth > 260 MHz

.

500 V/μs slew rate

.

Low power of 50 mA

.

Low all-hostile crosstalk of −78 dB at 5 MHz

.

Output disable allows connection of multiple device outputs

.

Reset pin allows disabling of all outputs

.

Excellent ESD rating: exceeds 4000 V human body model

.

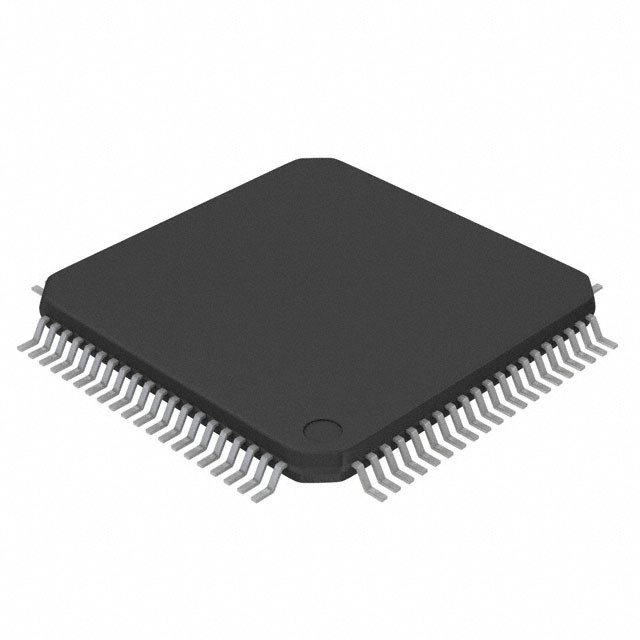

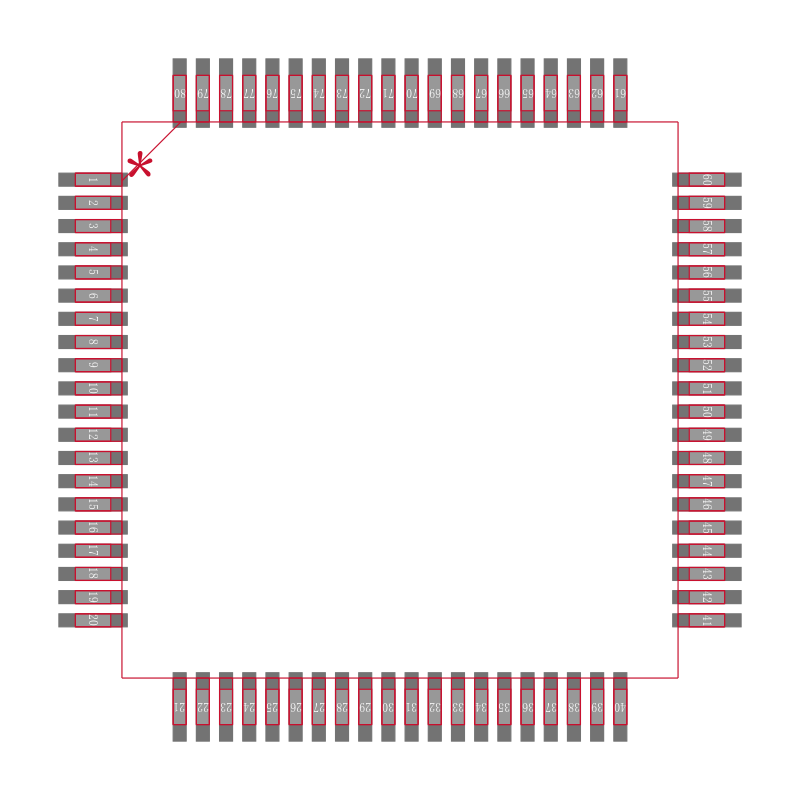

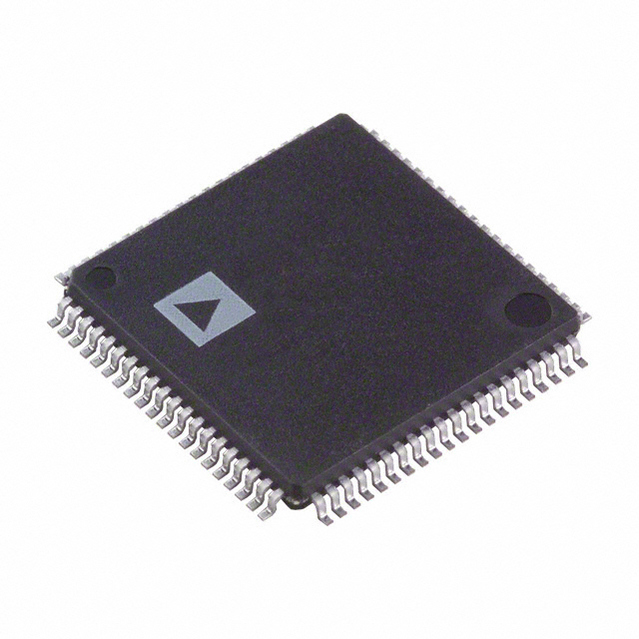

80-lead LQFP 12 mm × 12 mm
