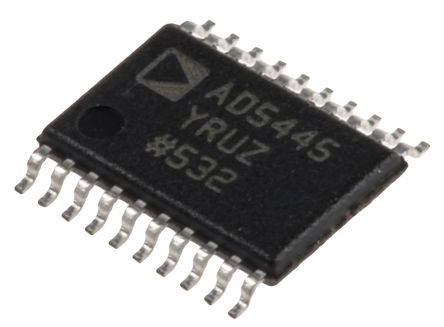

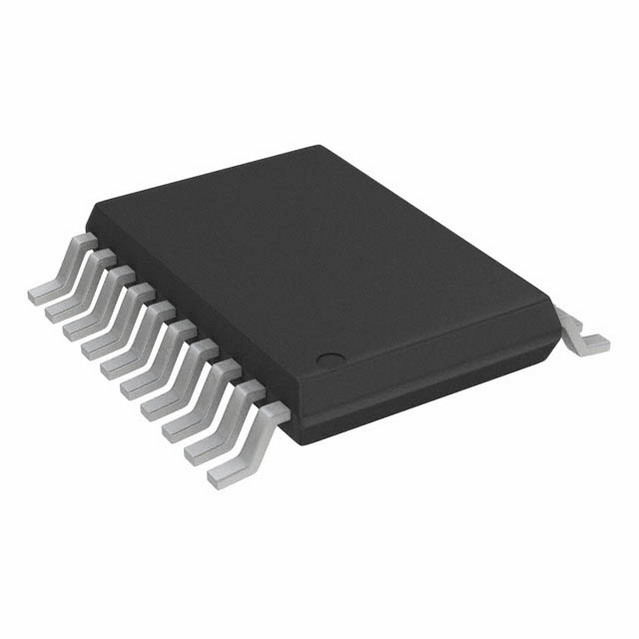

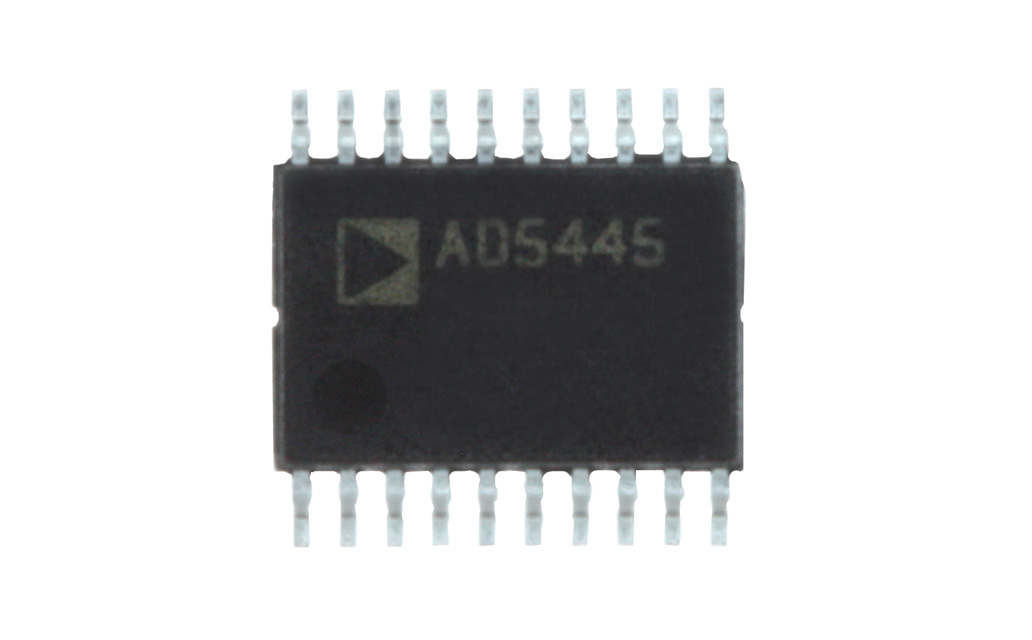

ANALOG DEVICES AD5445YRUZ 数模转换器, 12 bit, 20.4 MSPS, 并行, 2.5V 至 5.5V, TSSOP, 20 引脚
数字到模拟转换器 12 位,单通道,带并行接口,Analog Devices
### 数字到模拟转换器 - Analog Devices
得捷:
IC DAC 12BIT A-OUT 20TSSOP
立创商城:
AD5445YRUZ
欧时:
数字到模拟转换器 12 位,单通道,带并行接口,Analog Devices### 数字到模拟转换器 - Analog Devices
e络盟:
数模转换器, 12 bit, 20.4 MSPS, 并行, 2.5V 至 5.5V, TSSOP, 20 引脚
艾睿:
DAC 1-CH R-2R 12-bit 20-Pin TSSOP Tube
安富利:
The AD5445 is CMOS 8-, 10-, and 12-bit current output digital-to-analog converters DACs, respectively. These devices operate from a 2.5 V to 5.5 V power supply, making them suitable for battery-powered applications and many other applications. These DACs utilize data readback, allowing the user to read the contents of the DAC register via the DB pins. On power-up, the internal register and latches are filled with 0s and the DAC outputs are at zero scale.As a result of manufacturing with a CMOS submicron process, they offer excellent 4-quadrant multiplication characteristics, with large signal multiplying bandwidths of up to 10 MHz.The applied external reference input voltage VREF determines the full-scale output current. An integrated feedback resistor RFB provides temperature tracking and full-scale voltage output when combined with an external I-to-V precision amplifier.While these devices are upgrades of the AD5445 in multiplying bandwidth performance, they have a latched interface and cannot be used in transparent mode.The AD5424 is available in small, 20-lead LFCSP and 16-lead TSSOP packages, while the AD5433 DACs are available in small, 20-lead LFCSP and TSSOP packages.
Chip1Stop:
DAC 1-CH R-2R 12-bit 20-Pin TSSOP
Verical:
DAC 1-CH R-2R 12-bit 20-Pin TSSOP Tube
Newark:
# ANALOG DEVICES AD5445YRUZ Digital to Analog Converter, 12 bit, 20.4 MSPS, Parallel, 2.5V to 5.5V, TSSOP, 20 Pins
罗切斯特:
DAC 1-CH R-2R 12-bit 20-Pin TSSOP Tube
DeviceMart:
IC DAC 12BIT PARALL IOUT 20TSSOP
Win Source:
IC DAC 12BIT PARALL IOUT 20TSSOP
输出接口数 1
供电电流 400 nA
通道数 1
针脚数 20
位数 12
耗散功率 0.000003 W
采样率 20.4 Msps
分辨率Bits 12.0
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 0.003 mW
数模转换数DAC 1
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 20
封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1.05 mm
封装 TSSOP-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 Signal Processing, 工业, Industrial, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD5445YRUZ ADI 亚德诺 | 当前型号 | 当前型号 |
AD5445YRU 亚德诺 | 完全替代 | AD5445YRUZ和AD5445YRU的区别 |
AD5445YRUZ-REEL7 亚德诺 | 类似代替 | AD5445YRUZ和AD5445YRUZ-REEL7的区别 |
AD5445YRU-REEL7 亚德诺 | 类似代替 | AD5445YRUZ和AD5445YRU-REEL7的区别 |
