AD5380BSTZ-3

ANALOG DEVICES  AD5380BSTZ-3  数模转换器, 14 bit, 400 kSPS, 并行、串行, 2.7V 至 3.6V, LQFP, 100 引脚

Product Details

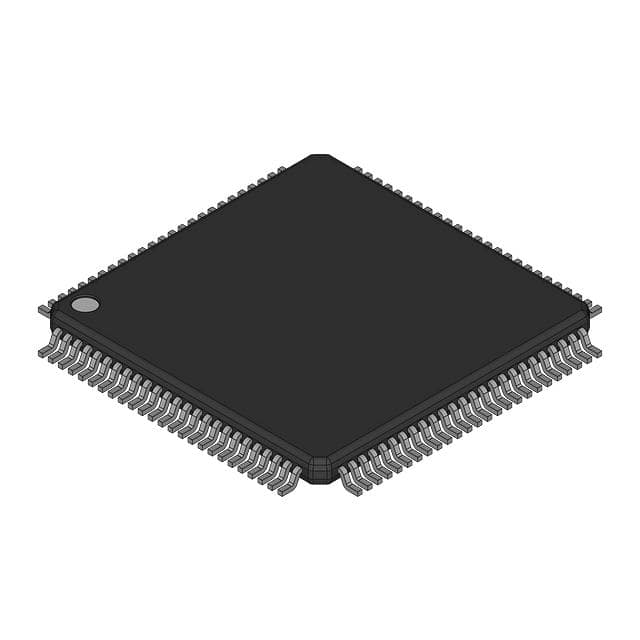

The AD5380 is a complete, single-supply, 40-channel, 14-bit DAC available in a 100-lead LQFP package. All 40 channels have an on-chip output amplifier with rail-to-rail operation. The AD5380 includes a programmable internal 1.25 V/2.5 V, 10 ppm/°C reference, an on-chip channel monitor function that multiplexes the analog outputs to a common MON_OUT pin for external monitoring, and an output amplifier boost mode that allows optimization of the amplifier slew rate. The AD5380 contains a double-buffered parallel interface that features a 20 ns WR pulse width, an SPI-, QSPI-, -MICROWIRE, -DSP compatible serial interface with interface speeds in excess of 30 MHz, and an I2C-compatible interface that supports a 400 kHz data transfer rate.

An input register followed by a DAC register provides double buffering, allowing the DAC outputs to be updated indepen-dently or simultaneously using the LDAC input.

Each channel has a programmable gain and offset adjust register that allows the user to fully calibrate any DAC chan-nel. Power consumption is typically 0.25 mA/channel with boost off.

**Applications**

.

Variable optical attenuators VOA

.

Level setting ATE

.

Optical micro-electro-mechanical systems MEMS

.

Control systems

.

Instrumentation

### Features and Benefits

.

Chinese data sheet available

.

Guaranteed Monotonic

.

INL error: ±4 LSB max

.

On-Chip 1.25 V/2.5 V Reference

.

With 10 ppm/ºC reference

.

Temperature range: –40°C to +85°C

.

Rail-to-rail output amplifier

.

Power down

.

Robust 6.5 kV HBM and 2 kV FICDM ESD rating

.

User interfaces:  Parallel Serial

SPI®-, QSPI™-, MICROWIRE™-, DSP-compatible, featuring data readback

I2C®-compatible

INTEGRATED FUNCTIONS

.

Channel monitor

.

Simultaneous output update via LDAC

.

Clear function to user programmable code

.

Amplifier boost mode to optimize slew rate

.

User programmable offset and gain adjust

.

Toggle mode enables square wave generation

.

Thermal monitor
