LC2MOS单电源， 12位600 kSPS的ADC LC2MOS Single Supply, 12-Bit 600 kSPS ADC
A must-have for data processing uses, this ADC made by Analog Devices will translate analog electrical signals. It has a single-ended input signal. This device is based on SAR architecture. This device"s digital interface is parallel|serial 3-wire. Its maximum power dissipation is 90 mW. This ADC has a resolution of 12bit. This ADC has an input voltage of ±5V/±10 V. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
数字逻辑电平 SAR
电源电压DC 4.75V min
供电电流 18.0 mA
电路数 1
通道数 1
位数 12
耗散功率 60 mW
采样率 500 ksps
功耗 60 mW
分辨率Bits 12.0
输入阻抗 8.00 kΩ
模数转换数ADC 1
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 90 mW
输入通道数 1
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 24

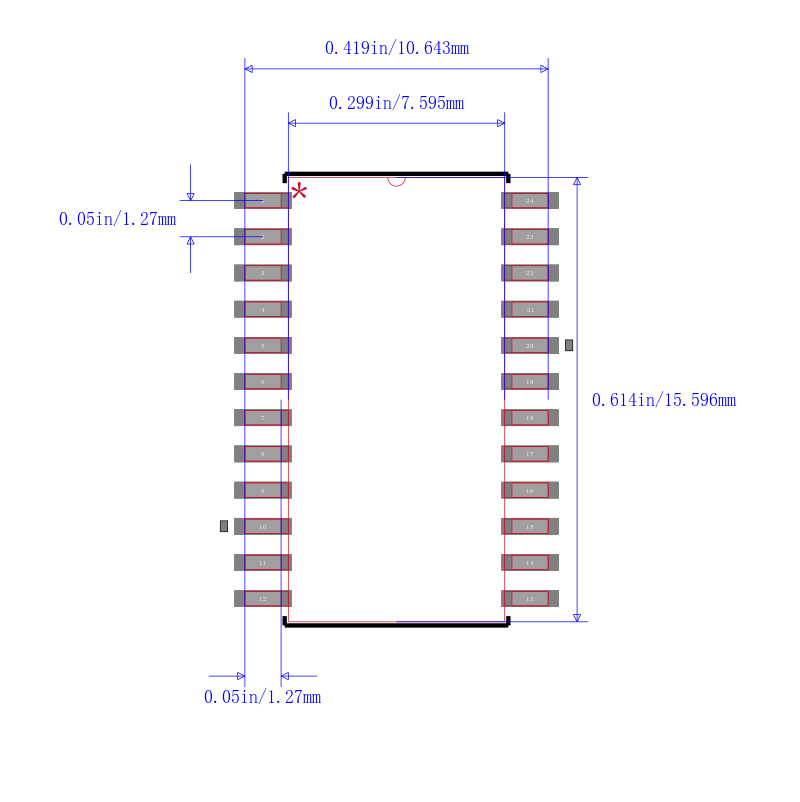

封装 SOIC-24
长度 15.6 mm
宽度 7.6 mm
高度 2.35 mm
封装 SOIC-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD7892AR-1 ADI 亚德诺 | 当前型号 | 当前型号 |
AD7892ARZ-1REEL 亚德诺 | 完全替代 | AD7892AR-1和AD7892ARZ-1REEL的区别 |
AD7892AR-1REEL 亚德诺 | 完全替代 | AD7892AR-1和AD7892AR-1REEL的区别 |
AD7892ARZ-1 亚德诺 | 类似代替 | AD7892AR-1和AD7892ARZ-1的区别 |
