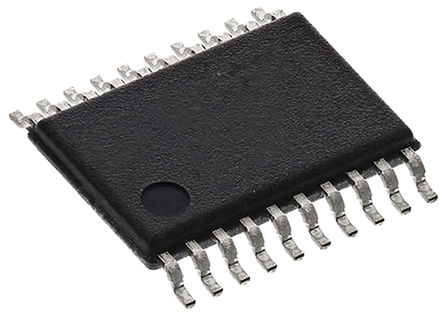

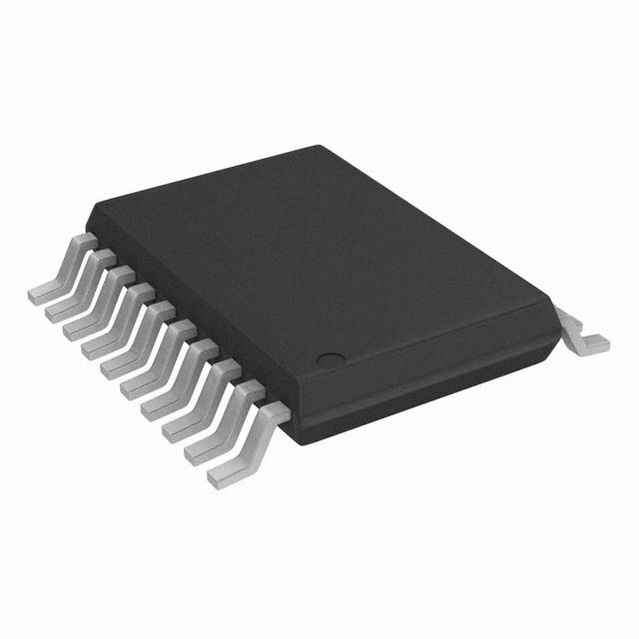

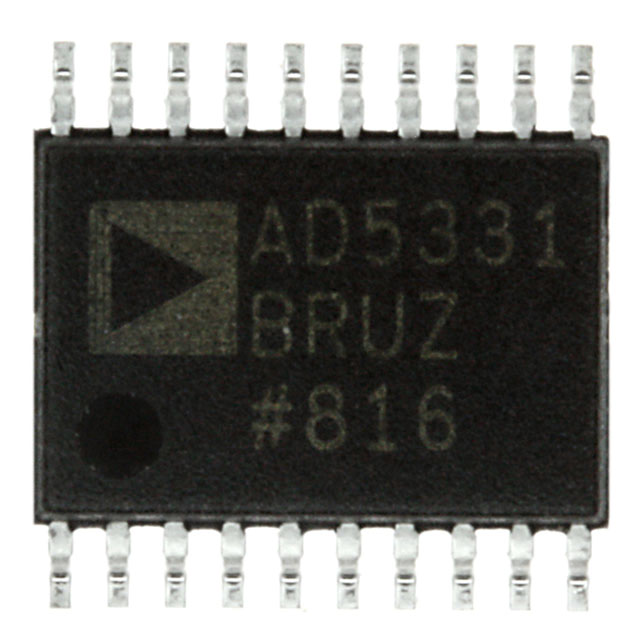

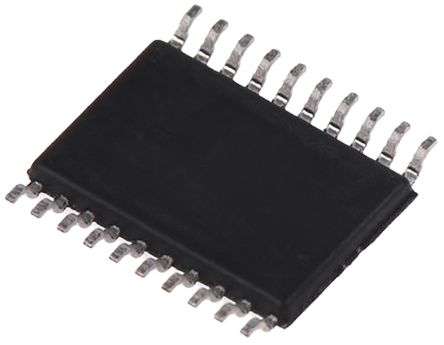

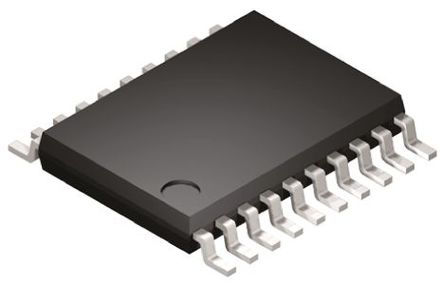

AD5331BRUZ

ANALOG DEVICES  AD5331BRUZ  数模转换器, 10 bit, 143 kSPS, 并行, 2.5V 至 5.5V, TSSOP, 20 引脚

模数转换器 10 位，Analog Devices

### 数字到模拟转换器 - Analog Devices

得捷:
IC DAC 10BIT V-OUT 20TSSOP

立创商城:
AD5331BRUZ

欧时:
Analog Devices AD5331BRUZ , 10 位 DAC, 143ksps, 并行接口, 20引脚 TSSOP封装

e络盟:
数模转换器, 10 bit, 143 kSPS, 并行, 2.5V 至 5.5V, TSSOP, 20 引脚

艾睿:
DAC 1-CH Resistor-String 10-bit 20-Pin TSSOP Tube

安富利:
The AD5331 is single 8-/10-/12- bit DACs. They operate from a 2.5 V to 5.5 V supply consuming just 115 μA at 3 V and feature a power-down mode that further reduces the current to 80 nA. The devices incorporate an on-chip output buffer that can drive the output to both supply rails, but the AD5330, AD5340, and AD5341 allow a choice of buffered or unbuffered reference input.The AD5331 have a parallel interface. CS selects the device and data is loaded into the input registers on the rising edge of WR.The GAIN pin allows the output range to be set at 0 V to VREF or 0 V to 2 × VREF.Input data to the DACs is double-buffered, allowing simultaneous update of multiple DACs in a system using the LDAC pin.An asynchronous CLR input is also provided, which resets the contents of the input register and the DAC register to all zeros. These devices also incorporate a power-on reset circuit that ensures that the DAC output powers on to 0 V and remains there until valid data is written to the device.The AD5331 is available in thin shrink small outline packages TSSOP.

Chip1Stop:
parallel DAC 1-CH Resistor-String 10-bit 20-Pin TSSOP Tube

Verical:
DAC 1-CH Resistor-String 10-bit 20-Pin TSSOP Tube

Newark:
# ANALOG DEVICES  AD5331BRUZ  Digital to Analog Converter, 10 bit, 143 kSPS, Parallel, 2.5V to 5.5V, TSSOP, 20 Pins

罗切斯特:
AD5331 - 2.5V to 5.5V, 115uA, Parallel Interface Single Voltage-Output 10-Bit DAC

DeviceMart:
IC DAC 10BIT SNGL VOUT 20TSSOP

Win Source:
IC DAC 10BIT SNGL VOUT 20TSSOP
