AD8065ART-REEL7

高性能， 145 MHz的FastFET⑩运算放大器 High Performance, 145 MHz FastFET⑩ Op Amps

Product Details

The AD8065/AD8066 _FastFET_™ amplifiers are voltage feedback amplifiers with FET inputs offering high performance and ease of use. The AD8065 is a single amplifier, and the AD8066 is a dual amplifier. These amplifiers are developed in the Analog Devices, Inc. proprietary XFCB process and allow exceptionally low noise operation 7.0 nV/√Hz and 0.6 fA/√Hz as well as very high input impedance.

With a wide supply voltage range from 5 V to 24 V, the ability to operate on single supplies, and a bandwidth of 145 MHz, the AD8065/AD8066 are designed to work in a variety of applications. For added versatility, the amplifiers also contain rail-to-rail outputs.

Despite the low cost, the amplifiers provide excellent overall performance. The differential gain and phase errors of 0.02% and 0.02°, respectively, along with 0.1 dB flatness out to 7 MHz, make these amplifiers ideal for video applications. Additionally, they offer a high slew rate of 180 V/μs, excellent distortion SFDR of −88 dBc @ 1 MHz, extremely high common-mode rejection of −100 dB, and a low input offset voltage of 1.5 mV maximum under warmed up conditions. The AD8065/AD8066 operate using only a 6.4 mA/amplifier typical supply current and are capable of delivering up to 30 mA of load current.

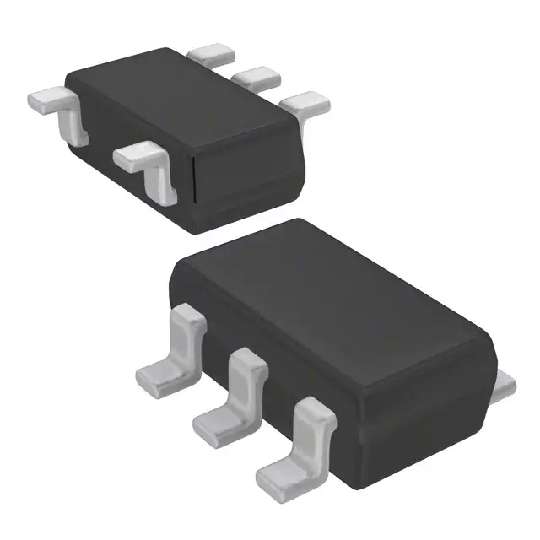

The AD8065/AD8066 are high performance, high speed, FET input amplifiers available in small packages: SOIC-8, MSOP-8, and SOT-23-5. They are rated to work over the industrial temperature range of −40°C to +85°C.

The AD8065WARTZ-REEL7 is fully qualified for automotive applications. It is rated to operate over the extended temperature range −40°C to +105°C, up to a maximum supply voltage range of ±5V only.

**Applications**

.

Automotive driver assistance systems

.

Photodiode preamps

.

Filters

.

A/D drivers

.

Level shifting

.

Buffering

### Features and Benefits

.

Qualified for automotive applications

.

FET input amplifier

.

1 pA input bias current

.

Low cost

.

High speed: 145 MHz, −3 dB bandwidth G = +1

.

180 V/μs slew rate G = +2

.

Low noise

.

7 nV/√Hz f = 10 kHz

.

0.6 fA/√Hz f = 10 kHz

.

Wide supply voltage range: 5 V to 24 V

.

Single-supply and rail-to-rail output

.

Low offset voltage 1.5 mV maximum

.

High common-mode rejection ratio: −100 dB

.

Excellent distortion specifications

.

SFDR −88 dBc @ 1 MHz

.

Low power: 6.4 mA/amplifier typical supply current

.

No phase reversal

.

Small packaging: SOIC-8, SOT-23-5, and MSOP-8

.
