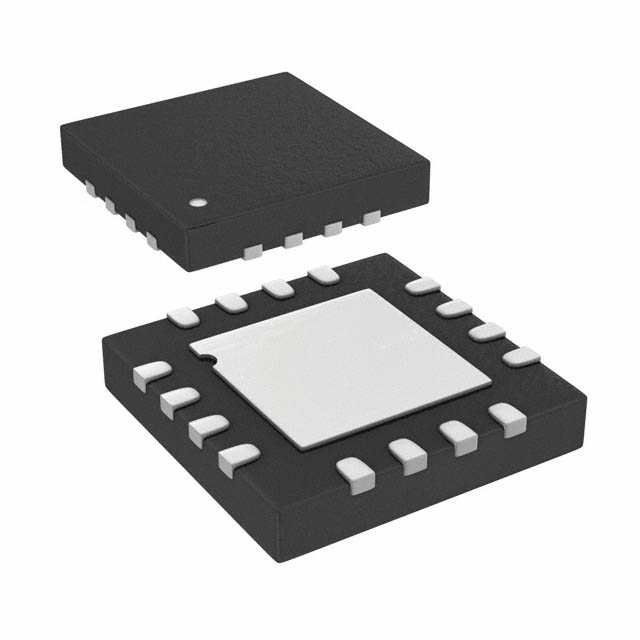

ADN2892ACPZ-RL7图片1

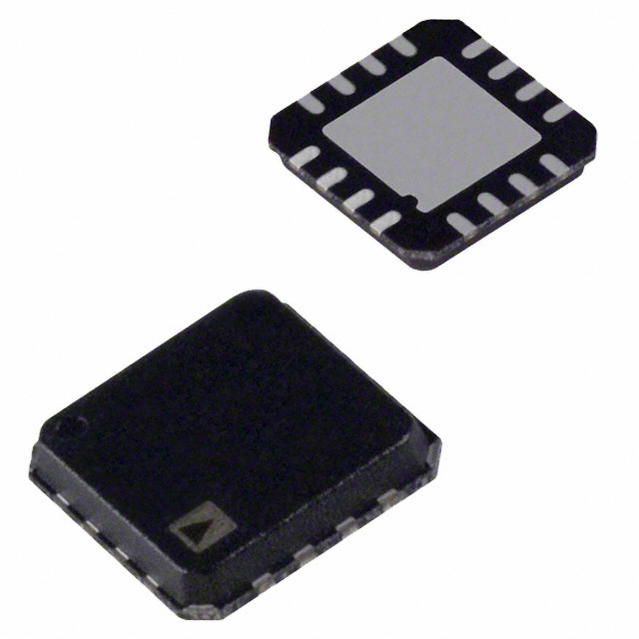

ADN2892ACPZ-RL7图片2
ADN2892ACPZ-RL7图片3
ADN2892ACPZ-RL7图片4
ADN2892ACPZ-RL7图片5
ADN2892ACPZ-RL7图片6
ADN2892ACPZ-RL7概述

3.3 V , 4.25 Gbps的速率,限幅放大器 3.3 V, 4.25 Gbps, Limiting Amplifier

Product Details

The ADN2892 is a 4.25 Gbps limiting amplifier with integrated loss of signal LOS detection circuitry and a received signal strength indicator RSSI. This part is optimized for Fibre Channel FC and Gigabit Ethernet GbE optoelectronic conversion applications. The ADN2892 has a differential input sensitivity of 3.5 mV p-p and accepts up to a 2.0 V p-p differential input overload voltage. The ADN2892 has current mode logic CML outputs with controlled rise and fall times.

The ADN2892 has a selectable low-pass filter with a −3 dB cutoff frequency of 1.5 GHz. By setting BW_SEL to Logic 0, the filter can limit the relaxation oscillation of a low cost CD laser used in a legacy 1 Gbps FC transmitter. The limited BW also reduces the rms noise and in turn improves the receiver optical sensitivity for a lower data rate application, such as 1× FC and GbE.

By monitoring the bias current through a photodiode, the onchip RSSI detector measures the average power received with 2% typical linearity over the entire valid input range of the photodiode. The on-chip RSSI detector facilitates SFF-8472-compliant optical transceivers by eliminating the need for external RSSI detector circuitry.

Additional features include a programmable loss-of-signal LOS detector and output squelch. The ADN2892 is available in a 3 mm × 3 mm, 16-lead LFCSP.

**Applications**

.
1×, 2×, and 4× FC transceivers
.
SFP/SFF/GBIC optical transceivers
.
GbE transceivers
.
Backplane receivers

### Features and Benefits

.
Input sensitivity: 3.5 mV p-p
.
70 ps rise/fall times
.
CML outputs: 750 mV p-p differential
.
Bandwidth selectable for multirate 1×/2×/4× FC modules
.
Optional LOS output inversion
.
Programmable LOS detector: 3.5 mV to 35 mV
.
Rx signal strength indicator RSSI
.
SFF-8472-compliant average power measurement
.
Single-supply operation: 3.3 V
.
Low power dissipation: 160 mW
.
Available in space-saving, 3 mm × 3 mm, 16-lead LFCSP
.
Extended temperature range: −40°C to +95°C
.
SFP reference design available
ADN2892ACPZ-RL7中文资料参数规格
技术参数

供电电流 48 mA

电路数 1

通道数 1

耗散功率 160 mW

输入补偿电压 100 µV

工作温度Max 95 ℃

工作温度Min -40 ℃

3dB带宽 1.5 GHz

耗散功率Max 160 mW

封装参数

安装方式 Surface Mount

引脚数 16

封装 LFCSP-16

外形尺寸

高度 0.83 mm

封装 LFCSP-16

物理参数

工作温度 -40℃ ~ 95℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

ADN2892ACPZ-RL7引脚图与封装图
ADN2892ACPZ-RL7引脚图
ADN2892ACPZ-RL7封装图
ADN2892ACPZ-RL7电路图
ADN2892ACPZ-RL7封装焊盘图
在线购买ADN2892ACPZ-RL7
型号: ADN2892ACPZ-RL7
制造商: ADI 亚德诺
描述:3.3 V , 4.25 Gbps的速率,限幅放大器 3.3 V, 4.25 Gbps, Limiting Amplifier
替代型号ADN2892ACPZ-RL7
型号/品牌 代替类型 替代型号对比

ADN2892ACPZ-RL7

ADI 亚德诺

当前型号

当前型号

ADN2892ACPZ-500RL7

亚德诺

完全替代

ADN2892ACPZ-RL7和ADN2892ACPZ-500RL7的区别

ADN2892ACPZ-RL

亚德诺

完全替代

ADN2892ACPZ-RL7和ADN2892ACPZ-RL的区别
