超低失真差分ADC驱动器 Ultralow Distortion Differential ADC Driver
Thanks to Analog Devices" differential adc driver differential amplifier, you will be able to clearly filter and analyze distorted audio samples. This part has a minimum operating temperature of -40 °C and a maximum of 105 °C. It has a single channel per chip. This device uses a single power supply.
得捷:
IC OPAMP DIFF 1 CIRCUIT 16LFCSP
贸泽:
差分放大器 Ultra Low Distortion Diff ADC Driver
艾睿:
SP Amp Differential ADC Driver Single 5.25V 16-Pin LFCSP EP T/R
安富利:
SP Amp Differential ADC Driver Single 5.25V 16-Pin LFCSP EP T/R
Chip1Stop:
SP Amp Differential ADC Driver Single 5.25V 16-Pin LFCSP EP T/R
Verical:
SP Amp Differential ADC Driver Single 5.25V 16-Pin LFCSP EP T/R
罗切斯特:
Line Driver, 1 Func, 1 Driver, BIPolar
输出电流 100mA @5V
供电电流 36.5 mA
电路数 1
通道数 1
共模抑制比 77 dB
增益频宽积 1.4 GHz
输入补偿电压 500 µV
输入偏置电流 10 µA
工作温度Max 105 ℃
工作温度Min -40 ℃
3dB带宽 1.4 GHz
共模抑制比Min 75dB ~ 85dB
电源电压Max 5V ~ 7V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16

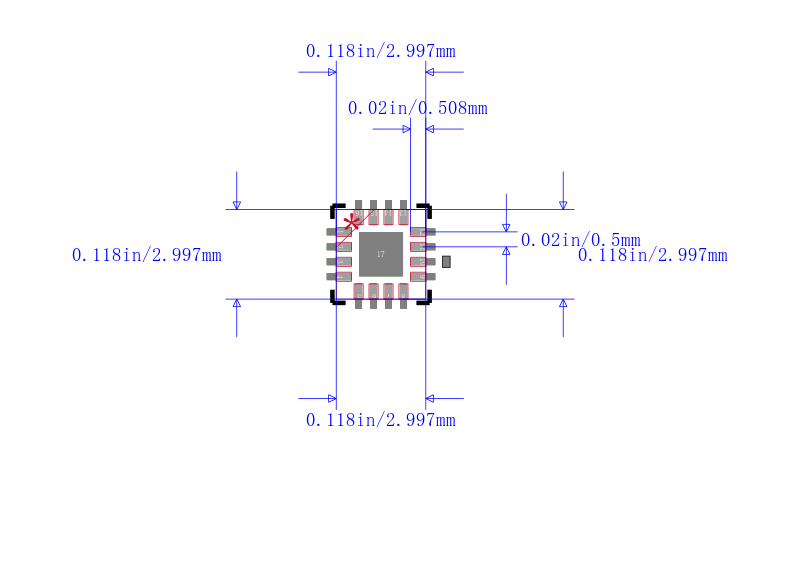

封装 LFCSP-16
高度 0.83 mm
封装 LFCSP-16
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADA4939-1YCPZ-R2 ADI 亚德诺 | 当前型号 | 当前型号 |
ADA4939-1YCPZ-R7 亚德诺 | 完全替代 | ADA4939-1YCPZ-R2和ADA4939-1YCPZ-R7的区别 |
ADA4939-1YCPZ-RL 亚德诺 | 完全替代 | ADA4939-1YCPZ-R2和ADA4939-1YCPZ-RL的区别 |
ADA4950-1YCPZ-R7 亚德诺 | 类似代替 | ADA4939-1YCPZ-R2和ADA4950-1YCPZ-R7的区别 |
