压敏电阻
压敏
得捷:
VARISTOR 12V 10A 0402
立创商城:
AVR-M1005C120MTAAB
贸泽:
压敏电阻 0402 12V 10A 130pF
艾睿:
Look no further, this AVR-M1005C120MTAAB MOV from TDK is a variable resistor. This device&s;s clamping current is 1 A and clamping voltage is 20 V. Its maximum surge current is 10 A. This voltage dependent resistor has an operating temperature of -40 to 125 °C. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This varistor has a voltage of 12 V. This device utilizes multilayer technology. The maximum DC voltage rating is 7.5 VDC. Its tolerance voltage is 20%. Its capacitance value is 130pF. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep.
安富利:
Var MLV 7.5VDC 10A 12V 0402 SMD T/R
Chip1Stop:
Commercial Grade, Multilayer Chip Varistor, 12V, 130pF, 7.5VDC, 0402
Verical:
Var MLV 7.5VDC 10A 12V 0402 SMD Automotive T/R
MASTER:
Var MLV 7.5VDC 10A 12V 0402 SMD Automotive T/R
Win Source:
VARISTOR 12V 10A 0402
Electro Sonic:
Var MLV 7.5VDC 10A 12V 0402 SMD Automotive T/R
额定电压DC 7.50 V
额定电压AC 12.0 V
电容 130 pF
容差 20 %
电路数 1
钳位电压 20 V
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压DC Max 7.5 V
安装方式 Surface Mount
封装公制 1005
封装 0402

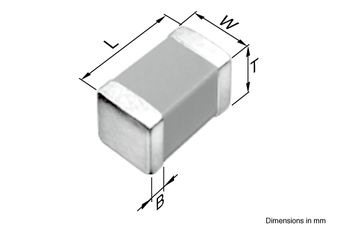

长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
材质 Zinc Oxide
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 for Consumer / Industrial, Switch
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533408070
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AVR-M1005C120MTAAB TDK 东电化 | 当前型号 | 当前型号 |
AVR-M1005C120MBAAB 东电化 | 功能相似 | AVR-M1005C120MTAAB和AVR-M1005C120MBAAB的区别 |
