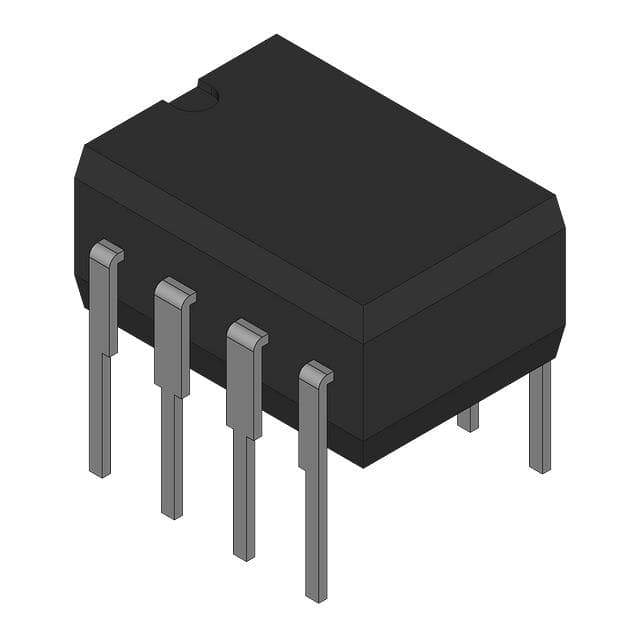

AD654JN

低成本的单芯片电压频率转换器 Low Cost Monolithic Voltage-to-Frequency Converter

PRODUCT DESCRIPTION

The AD654 is a monolithic V/F converter consisting of an input amplifier, a precision oscillator system, and a high current output stage. A single RC network is all that is required to set up any full scale FS frequency up to 500 kHz and any FS input voltage up to ± 30 V. Linearity error is only 0.03% for a 250 kHz FS, and operation is guaranteed over an 80 dB dynamic range. The overall temperature coefficient excluding the effects of external components is typically ±50 ppm/°C. The AD654 operates from a single supply of 5 V to 36 V and consumes only 2.0 mA quies cent current.

FEATURES

  Low Cost

  Single or Dual Supply, 5 V to 36 V, 65 V to 618 V

  Full-Scale Frequency Up to 500 kHz

  Minimum Number of External Components Needed

  Versatile Input Amplifier

     Positive or Negative Voltage Modes

     Negative Current Mode

     High Input Impedance, Low Drift

  Low Power: 2.0 mA Quiescent Current

  Low Offset: 1 mV
