AFT05MP075NR1

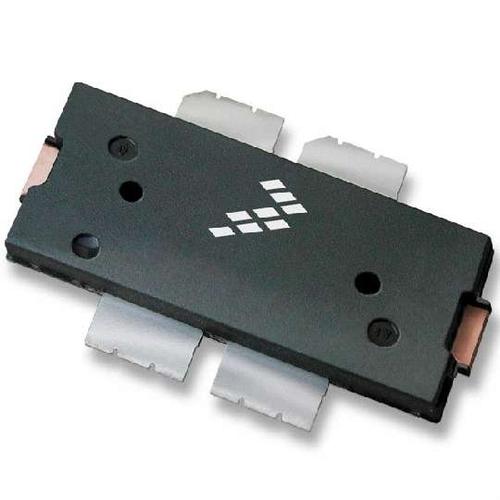

晶体管, 射频FET, 40 V, 690 W, 136 MHz, 520 MHz, TO-270WB

Overview

The and AFT05MP075GNR1 are designed for mobile two-way radio applications with frequencies from 136 to 520 MHz. The high gain, ruggedness and broadband performance of these devices make them ideal for large-signal, common source amplifier applications in mobile radio equipment.

MoreLess

## Features

* Characterized for Operation from 136 to 520 MHz

* Unmatched Input and Output Allowing Wide Frequency Range Utilization

* Integrated ESD Protection

* Integrated Stability Enhancements

* Wideband — Full Power Across the Band

* Exceptional Thermal Performance

* Extreme Ruggedness

* High Linearity for: TETRA, SSB, LTE

* RoHS Compliant

* In Tape and Reel. R1 Suffix = 500 Units, 44 mm Tape Width, 13-inch Reel.

* These products are included in our product longevity program with assured supply for a minimum of 15 years after launch.

**Typical Applications**

* Output Stage VHF Band Mobile Radio

* Output Stage UHF Band Mobile Radio

## Features RF Performance Tables

### Typical Performance

12.5 V, TA = 25°C, CW

.

*Frequency** | **Gps

dB

.

* | **ηD

%

.

* | **Pout

W

.

*

\---|---|---|---

136 MHz| 21.0| 68.0| 76

450-520 MHz| 14.6| 65.8| 75

520 MHz| 18.5| 68.5| 70

### Ruggedness

**Frequency

MHz

.

* | **Signal Type** | **VSWR** | **Pin

W

.

* | **Test

Voltage

.

* | **Result**

\---|---|---|---|---|---

520| CW| > 65:1

at all Phase

Angles| 2

3 dB

Overdrive| 17| No

Device

Degradation
