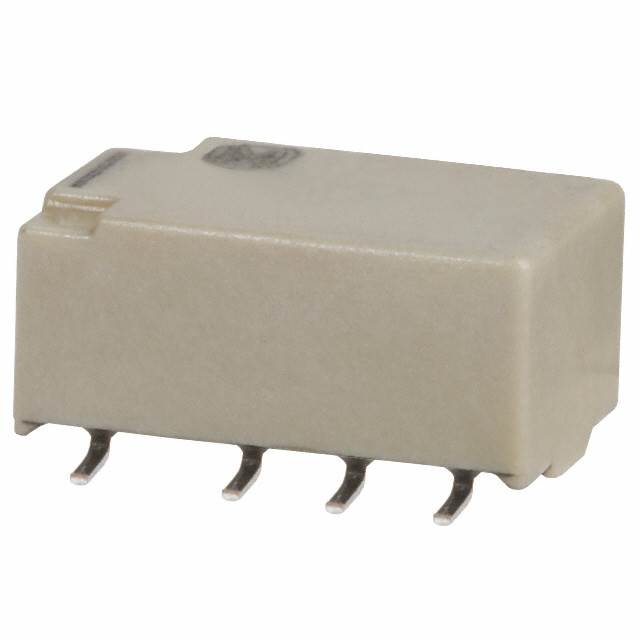

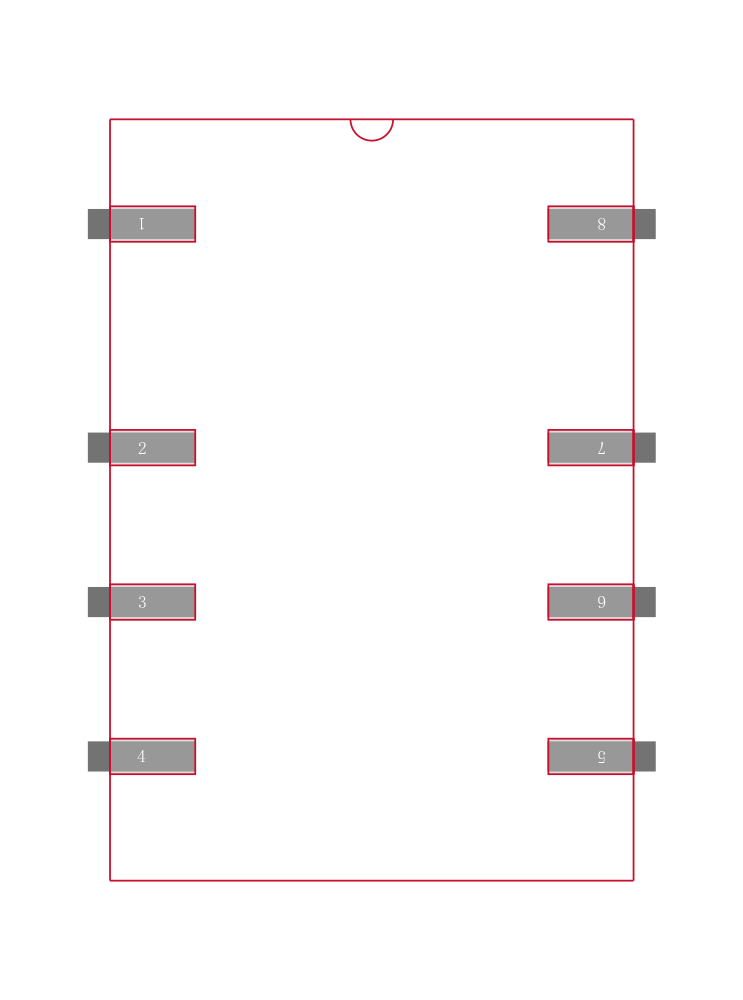

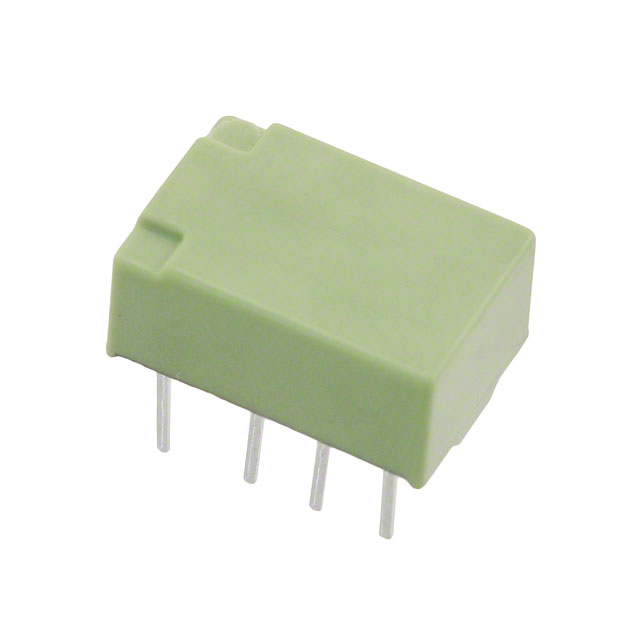

AGQ210S4HZ

AGQ 系列 高灵敏度 1 A 双刀双掷 4.5 VDC 锁存 1 线圈 表面贴装 信号继电器

FEATURES

1\. High capacity: 2 A

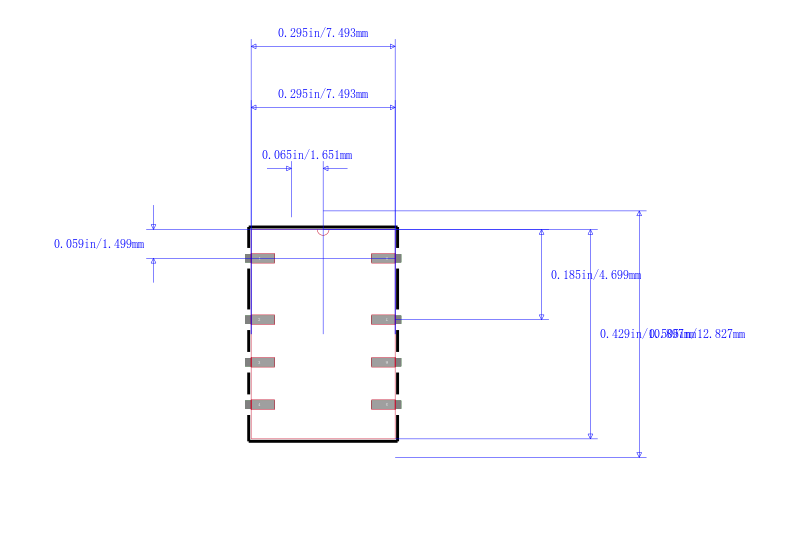

2\. Compact flat body saves space With a small footprint of 10.6 mm L × 7.2 mm W .417 inch L × .283 inch W for space savings, it also has a very short height of 5.2 mm .205 inch. Standard PC board type.

3\. High sensitivity single side stable type Nominal operating power: 100mW is available

4\. Outstanding surge resistance.

   Surge breakdown voltage between

   contacts and coil: 2,500 V 2×10 µs Telcordia Surge breakdown voltage between

   open contacts: 1,500 V 10×160 µs FCC part 68

5\. The use of twin crossbar contacts ensures high contact reliability. AgPd contact is used because of its good sulfide resistance. Adopting low gas molding material. Coil assembly molding technology which avoids generating volatile gas from coil.

6\. Increased packaging density Due to highly efficient magnetic circuit design, leakage flux is reduced and changes in electrical characteristics from components being mounted close-together are minimized. This all means a packaging density higher than ever before.

7\. Nominal operating power: 140 mW

8\. Outstanding vibration and shock resistance.

   Functional shock resistance: 750 m/s2

   Destructive shock resistance: 1,000 m/s2

   Functional vibration resistance: 10 to 55 Hz at double amplitude of 3.3 mm .130 inch

   Destructive vibration resistance: 10 to 55 Hz at double amplitude of 5 mm .197 inch

9\. Sealed construction allows automatic washing.

TYPICAL APPLICATIONS

1\. Telephone switchboard

2\. Telecommunications equipment

3\. Security

4\. Measurement equipment

5\. Consumer electronic and audio visual equipment
