AON7401L

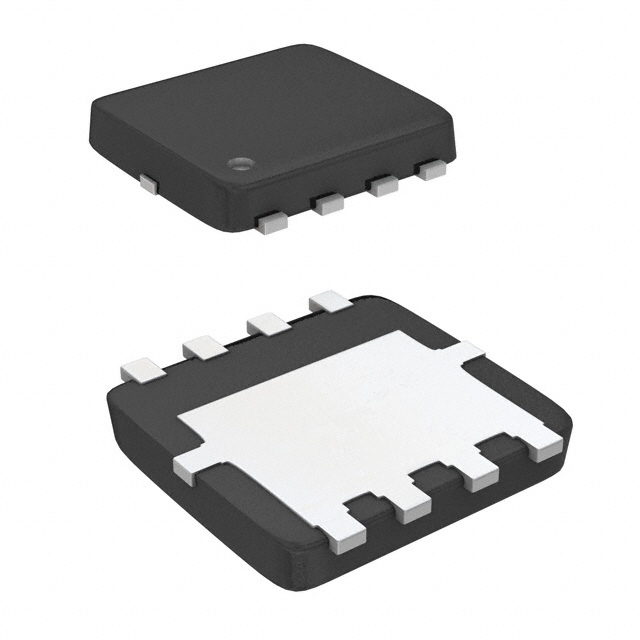

DFN P-CH 30V 20A

General Description

The AON7401/L uses advanced trench technology to provide excellent RDSON, and ultra-low low gate charge with a 25V gate rating. This device is suitable for use as a load switch or in PWM applications. AON7401 and are electrically identical.

-RoHS Compliant

-AON7401L is Halogen Free

Features

  VDS V = -30V

  ID = -9A VGS = -10V

  RDSON < 14mΩ VGS = -10V

  RDSON < 36mΩ VGS = -4.5V
