ABSM2-32.768MHZ-4-T参数规格_中文资料_数据手册PDF

ABSM2-32.768MHZ-4-T概述

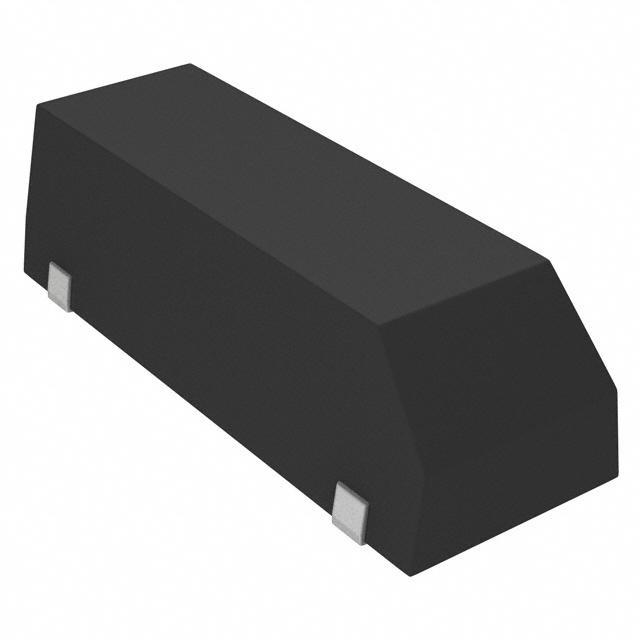

Plastic Surface Mount Crystals, 32.768MHz, Third Overtone, 18pF, 30ppm @ 25C, 50ppm -10+60C , 12.5 X 4.6 X 3.7mm, Embedded Heat Resistant Cylinder Crystal, ,

±30ppm 晶体 18pF 4-SOJ，9.40mm 间距

得捷:
CRYSTAL 32.7680MHZ 18PF SMD

贸泽:
Crystals 32.768MHz 18pF 30ppm -10C +60C 3OT

艾睿:
Crystal 32.768MHz ±30ppm Tol ±50ppm Stability 18pF 3rd Overtone 100Ohm 4-Pin SMD T/R

Verical:
Crystal 32.768MHz ±30ppm Tol ±50ppm Stability 18pF 3rd Overtone 100Ohm 4-Pin SMD T/R

ABSM2-32.768MHZ-4-T中文资料参数规格

技术参数

频率 32.768 MHz

频率稳定度 ±50 ppm

频率容差 ±30 ppm

等效串联电阻ESR 100 Ω

负载电容 18 pF

工作温度Max 60 ℃

工作温度Min -10 ℃

封装参数

安装方式 Surface Mount

引脚数 4

封装 SMD-4

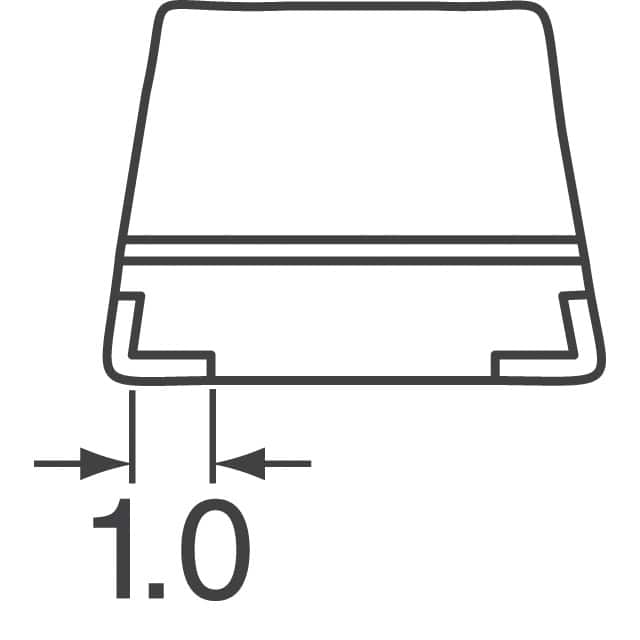

外形尺寸

长度 12.5 mm

宽度 4.6 mm

高度 3.7 mm

封装 SMD-4

物理参数

工作温度 -10℃ ~ 60℃

其他

产品生命周期 Obsolete

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买ABSM2-32.768MHZ-4-T

型号： ABSM2-32.768MHZ-4-T

制造商： Abracon

描述：Plastic Surface Mount Crystals, 32.768MHz, Third Overtone, 18pF, 30ppm @ 25C, 50ppm -10+60C , 12.5 X 4.6 X 3.7mm, Embedded Heat Resistant Cylinder Crystal, ,
