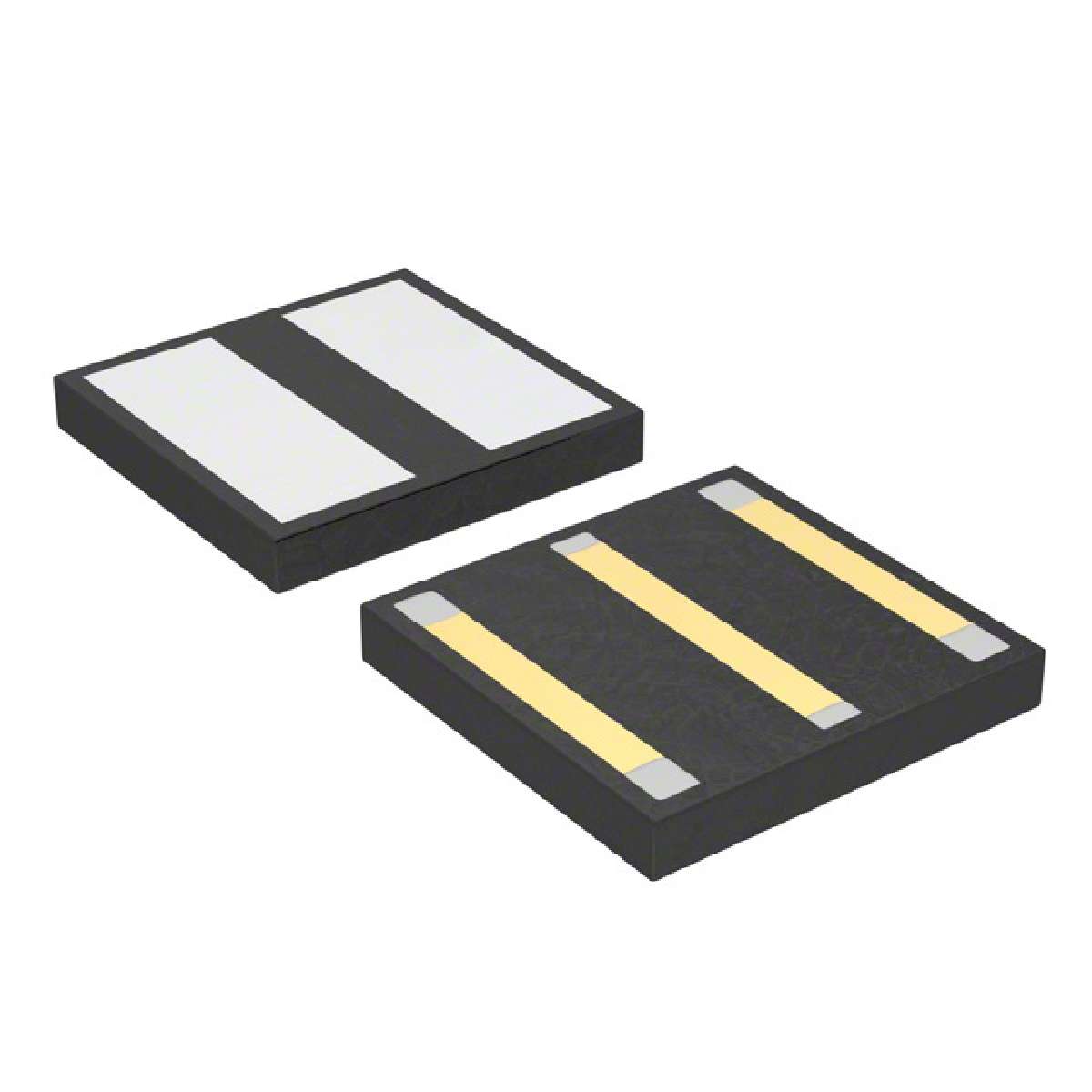

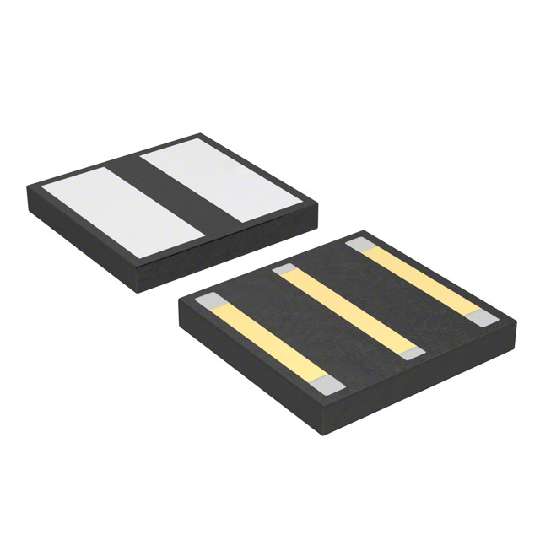

ATN3590-20

ATTENUATOR PAD CHIP 2W 20dB

Description

The ATN3590 family of fixed resistive attenuators are integrated circuits comprising thin film resistors and through-die vias that provide excellent attenuation flatness from low frequency to 40 GHz or higher. These attenuators are available from 0 to 30 dB

Features

Fixed value, absorptive devices

Available attenuation values range from 0 to 10 dB in 1 dB steps, and 12, 15, 20, and 30 dB

Suitable for use to 40 GHz or higher

Excellent return loss: 30 dB, typical

Enhanced power handling: 2 W

Applications

Level adjustment in radios, radars, EW/ECM equipment, and test instruments
