ACF451832-333

EMI Filter 7MHz to 60MHz 25dB 0.3A 50VDC Flat Style SMD

FEATURES

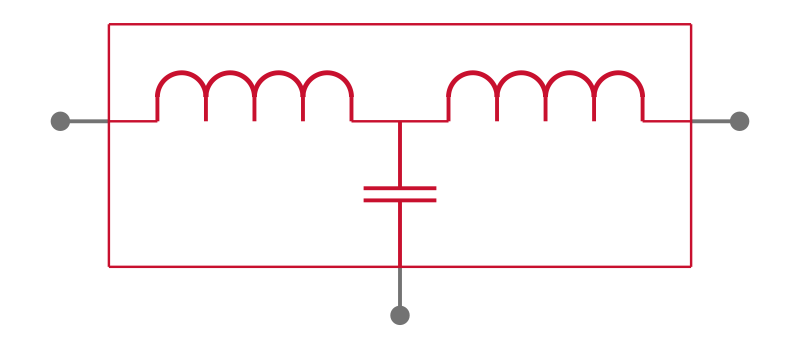

• The ACF series are T-type EMC filters incorporating ferrite chip beads and multilayer ceramic chip capacitors.

• The external structure consists entirely of ferrite, enabling these parts to achieve superior attenuation characteristics despite their extremely compact dimensions.

• Because they can be mounted on edge, the ACF series are ideal for high-density circuit configurations.

• Available for reflow soldering.
