压敏电阻
压敏
得捷:
VARISTOR 27V 0603
立创商城:
AVRL161A3R3FTA
贸泽:
Varistors 0603 27V 3.3pF
艾睿:
Apply different voltages to this AVRL161A3R3FTA MOV from TDK in order to change resistance of it. This voltage dependent resistor has an operating temperature of -40 to 85 °C. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. The maximum DC voltage rating is 10 VDC. This device is made with multilayer technology. This varistor has a voltage of 27 V. Its capacitance value is 3.3pF.
安富利:
Var Zinc Oxide 10VDC 27V 0603 SMD T/R
Chip1Stop:
Var MLV 10VDC 27V 0603 SMD Automotive T/R
Verical:
Var MLV 10VDC 27V 0603 SMD Automotive T/R
Electro Sonic:
Var MLV 10VDC 27V 0603 SMD Automotive T/R
额定电压DC 10 V
额定电压AC 27.0 V
电容 3.3 pF
电路数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 10 V
安装方式 Surface Mount
封装公制 1608
封装 0603

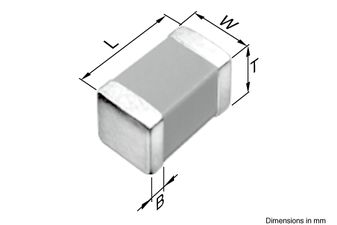

长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
材质 Zinc Oxide
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 for Automotive, USB2.0
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AVRL161A3R3FTA TDK 东电化 | 当前型号 | 当前型号 |
AVRL101A3R3FBA 东电化 | 完全替代 | AVRL161A3R3FTA和AVRL101A3R3FBA的区别 |
AVRL161A3R3FBA 东电化 | 完全替代 | AVRL161A3R3FTA和AVRL161A3R3FBA的区别 |
VCH4AG100R8MATWA 艾维克斯 | 功能相似 | AVRL161A3R3FTA和VCH4AG100R8MATWA的区别 |
