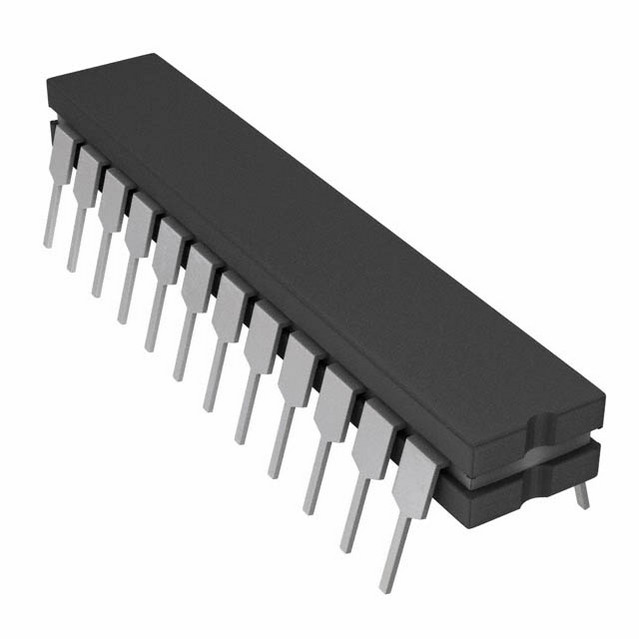

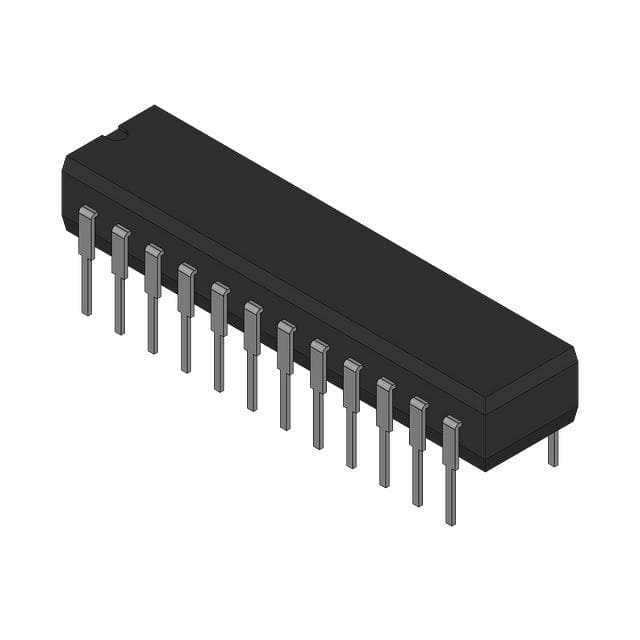

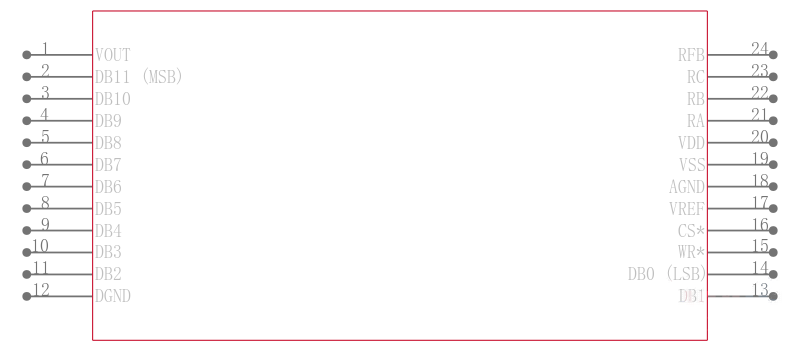

AD7845BQ

LC2MOS完整的12位乘法DAC LC2MOS Complete 12-Bit Multiplying DAC

Product Details

The AD7845 is the industry"s first 4-quadrant multiplying D/A converter with an on-chip amplifier. It is fabricated on the LC 2MOS process, which allows precision linear components and digital circuitry to be implemented on the same chip.

The 12 data inputs drive latches which are controlled by standard CS and WR signals, making microprocessor interfacing simple. For stand-alone operation, the CS and WR inputs can be tied to ground, making all latches transparent. All digital inputs are TTL and 5 V CMOS compatible.

The output amplifier can supply ±10 V into a 2kohm load. It is internally compensated, and its input offset voltage is low due to laser trimming at wafer level. For normal operation, RFB is tied to VOUT, but the user may alternatively choose RA, RB or RC to scale the output voltage range.

### Features and Benefits

.

12-Bit CMOS MDAC with Output Amplifier

.

4-Quadrant Multiplication

.

Low Power LC2MOS

.

Guaranteed Monotonic Tmin to Tmax

.

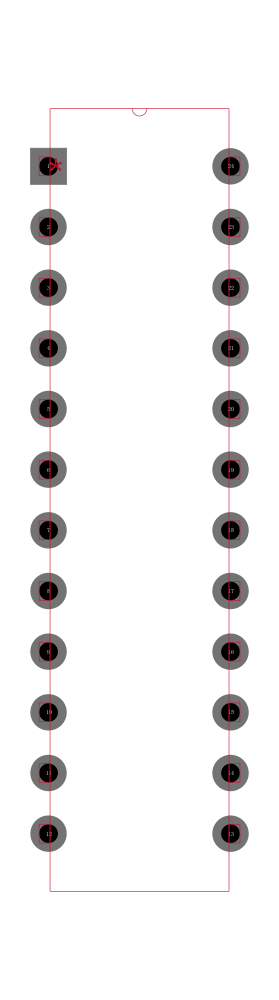

Space-Saving 0.3" DIPS and 24- or 28- Terminal Surface Mount Packages

.

Application Resistors On Chip for Gain Ranging, etc.
