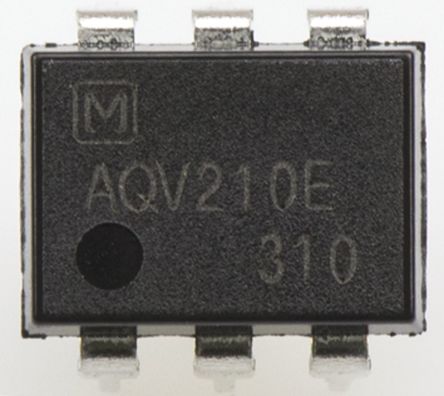

AQV210E

PANASONIC ELECTRIC WORKS  AQV210E  固态继电器, PHOTOMOS, SPST-NO, 晶体管输出, 130mA

和 AQV210EH

光电 photoMOS 继电器，带 MOSFET 输出级。

应用：电话和通信设备或高速通信系统。

Technical specifications

---

Configuration of contacts: | 1 N/O

**Common input characteristics:** |

Operating current | \- type E:  1.1 mA / - EH type: 1.6 mA

LED off current: | 1 μA

LED overload current: | 50mA

LED nominal voltage: | 1.14 V

LED reverse voltage: | 3 V

Peak current: | 1A

Rated dissipation: | 75 mW

**Common output characteristics:** |

Voltage: | 350 VAC / DC

Current | 130 mA

Power: | 500 mW

Response time ton / toff: | 0.5 / 0.05 ms

Input/output capacity: | 0.8 pF

Input/output insulation resistance: | 1000MΩ

Thermal EMF: | 1 μV

Operating temperature: | –20°C to +85°C

### 认可

  UL 和 CSA
