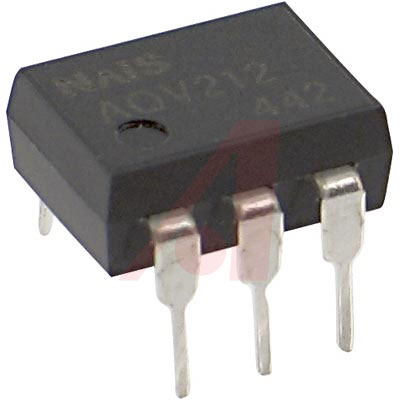

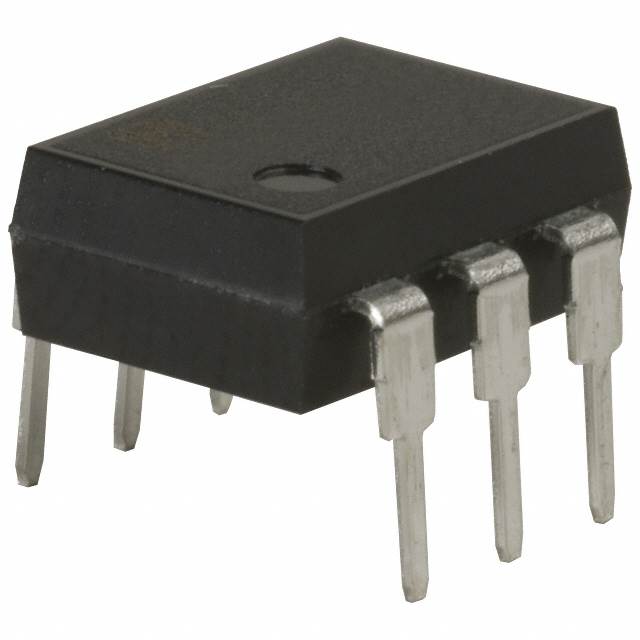

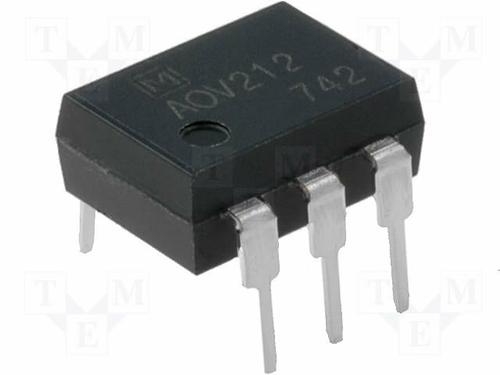

PANASONIC ELECTRIC WORKS AQV212 继电器, MOSFET, 60 V, 550 mA, 2.5R, SPST常开
The is a Solid State Relay with SPST-NO contact and through hole terminals. This AQV-series PhotoMOS GU 1-form-A relay feature extremely low closed-circuit offset voltage to enable control of low-level analogue signals without distortion. Eliminates the need for a counter electromotive force protection diode in the drive circuits on the input side. Controls various types of loads such as relays, motors, lamps and solenoids.
- .
- Controls low-level analogue signals
- .
- Stable on resistance
- .
- Low-level off state leakage current
- .
- 550mW Power dissipation
- .
- 2ms Turn-on and 0.2ms turn-off maximum time
- .
- -40 to 85°C Operating temperature range
电源电压DC 3.00 V
额定电压DC 60.0 V
额定电流 0.55 A
电容 1.5 pF
输出电压 0V ~ 60V
输出电流 500 mA
触点类型 SPST-NO
负载电流 550 mA
输入电流 5 mA
耗散功率 550 mW
上升时间 650 µs
隔离电压 1.5 kV
正向电流 1 mA
输入电压Max 1.5 V
输出电压Max 60 V
输出电流Max 0.55 A
输入电流Min 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 550 mW
额定电压 60 V
输入电压 1.14 VDC

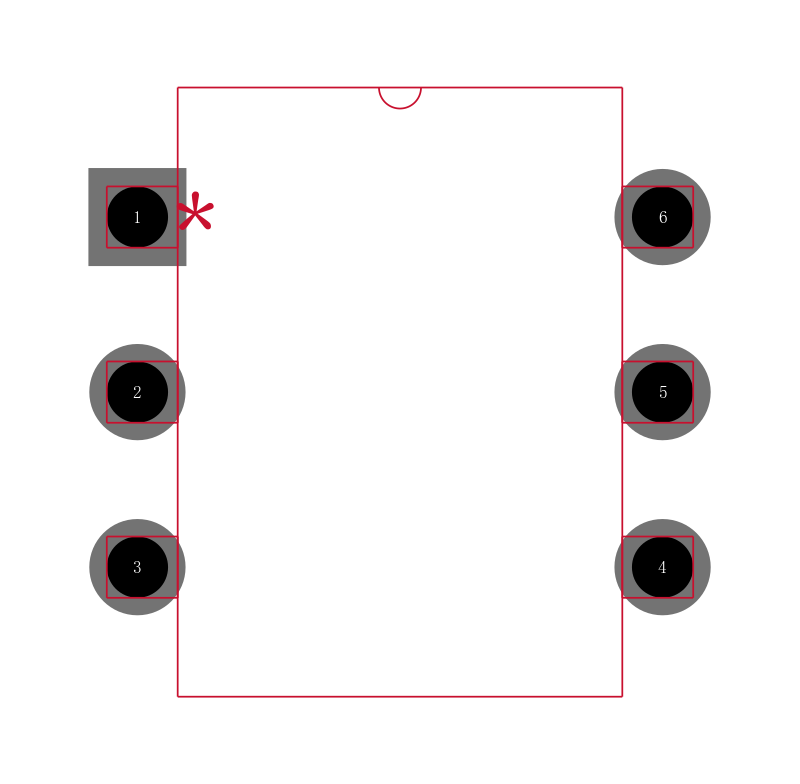

安装方式 Through Hole
引脚数 6
封装 DIP-6
长度 8.79 mm
宽度 6.40 mm
高度 3.91 mm
封装 DIP-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 通信与网络, 计算机和计算机周边, Computers & Computer Peripherals, Test & Measurement, Communications & Networking, 电机驱动与控制, 测试与测量, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
