双10位通道TxDAC + ⑩ 2倍插值滤波器 Dual 10-Bit TxDAC+⑩ with 2x Interpolation Filters
Product Details
The AD9761 is a complete dual channel, high speed, 10-bit CMOS DAC. The AD9761 has been developed specifically for use in wide bandwidth communication applications e.g., spread spectrum where digital I and Q information is being processed during transmit operations. It integrates two 10-bit, 40 MSPS DACs, dual 2x interpolation filters, a voltage reference, and digital input interface circuitry. The AD9761 supports a 20 MSPS per channel input data rate that is then interpolated by 2x up to 40 MSPS before simultaneously updating each DAC.
The interleaved I and Q input data stream is presented to the digital interface circuitry, which consists of I and Q latches as well as some additional control logic. The data is de-interleaved back into its original I and Q data. An on-chip state machine ensures the proper pairing of I and Q data. The data output from each latch is then processed by a 2x digital interpolation filter that eases the reconstruction filter requirements. The interpolated output of each filter serves as the input of their respective 10-bit DAC.
The DACs utilize a segmented current source architecture combined with a proprietary switching technique to reduce glitch energy and to maximize dynamic accuracy. Each DAC provides differential current output thus supporting single-ended or differential applications. Both DACs are simultaneously updated and provide a nominal full-scale current of 10 mA. Also, the full-scale currents between each DAC are matched to within 0.07 dB i.e., 0.75%, thus eliminating the need for additional gain calibration circuitry.
The AD9761 is manufactured on an advanced low cost CMOS process. It operates from a single supply of 2.7 V to 5.5 V and consumes 200 mW of power. To make the AD9761 complete it also offers an internal 1.20 V temperature-compensated bandgap reference.
### Features and Benefits
3 V Supply @ 40 MSPS
输出接口数 2
通道数 2
位数 10
耗散功率 250 mW
采样率 40 Msps
分辨率Bits 10.0
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 250 mW
数模转换数DAC 2
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 28

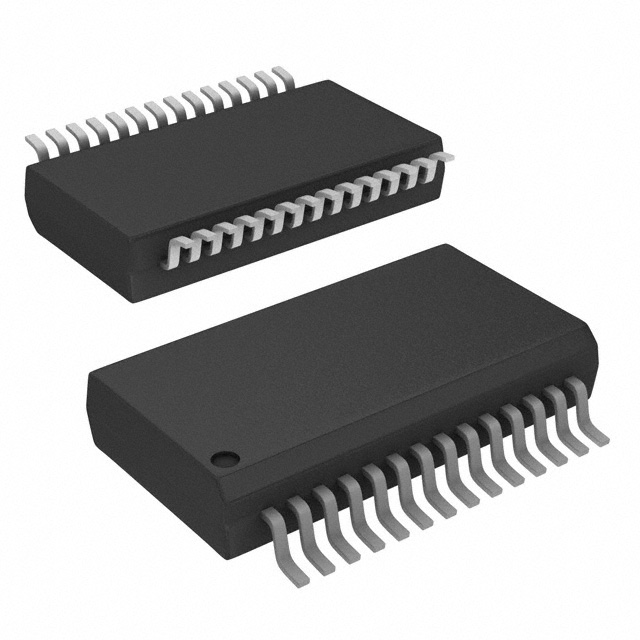

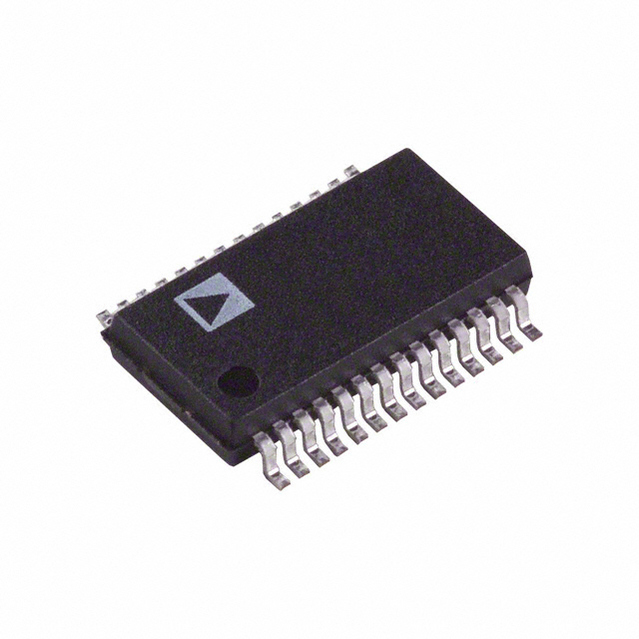

封装 SSOP-28
高度 1.75 mm
封装 SSOP-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
军工级 No
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD9761ARS ADI 亚德诺 | 当前型号 | 当前型号 |
AD9761ARSZ 亚德诺 | 完全替代 | AD9761ARS和AD9761ARSZ的区别 |
AD9761ARSRL 亚德诺 | 完全替代 | AD9761ARS和AD9761ARSRL的区别 |
AD9761ARSZRL 亚德诺 | 类似代替 | AD9761ARS和AD9761ARSZRL的区别 |
