AHN211X1

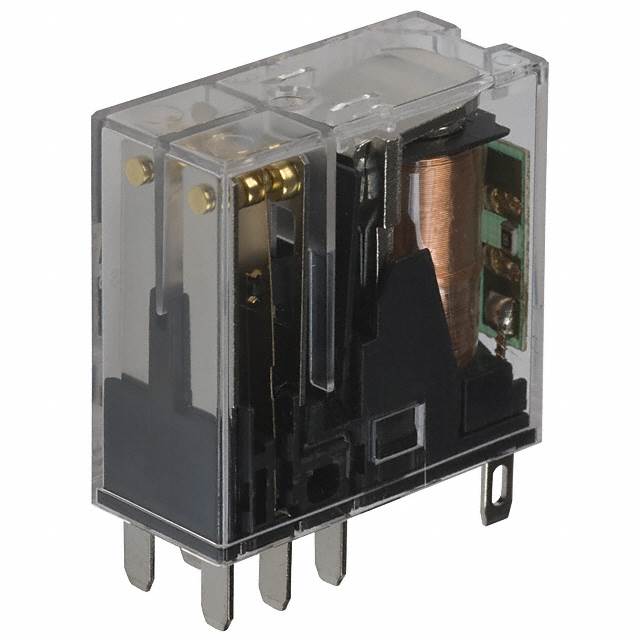

AHN211X1图片1

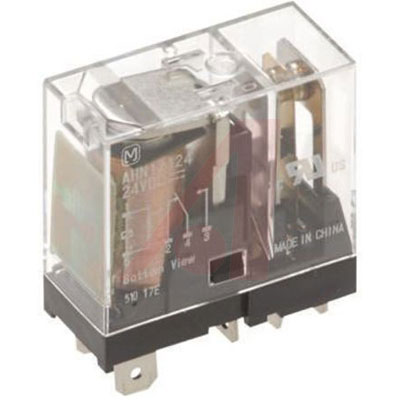

AHN211X1图片2
AHN211X1图片3
AHN211X1图片4
AHN211X1概述

通用继电器 Plug-in AC110/120V with LED

**High Power, AHN Series**

These high power relays are slim,compact and evironmentally friendly through the use of cadmium free contacts and lead free solder. Typical applications for these power relays include control panels, PSUs, molding machines, machine tools, welding equipment, agricultural equipment, office equipment, vending machines and communications equipment.


贸泽:
通用继电器 Plug-in AC110/120V with LED


Allied Electronics:
DPDT-NO/NC Pmnt Non-Latching Relay PlugIn, 5 A@ 30V dc, 110V dc, 110 to 120V ac


Chip1Stop:
Electromechanical Relay 110/120VAC 5A DPDT 29x13x34mm Plug-In Slim and Compact Relay


Verical:
Relays 110/120VAC 5A DPDT29x13x34mm Plug-In Slim and Compact Relay


Online Components:
Electromechanical Relay 110/120VAC 5A DPDT 29x13x34mm Plug-In Slim and Compact Relay


Electro Sonic:
Electromechanical Relay 110/120VAC 5A DPDT 29x13x34mm Plug-In Slim and Compact Relay


AHN211X1中文资料参数规格
技术参数

触点类型 DPDT

功耗 1.4 VA

触点额定电流 5.00 A

线圈电流 9.70 mA

线圈电压AC 120 V

额定电流Max 5 A

额定功率Max 150W, 1.25KVA

额定电压DC Max 30 V

额定电压AC Max 250 V

封装参数

安装方式 Plug In

引脚数 8

外形尺寸

长度 29 mm

宽度 34 mm

高度 13 mm

物理参数

触点材质 Silver Nickel

工作温度 -40℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买AHN211X1
型号: AHN211X1
制造商: Panasonic 松下
描述:通用继电器 Plug-in AC110/120V with LED
