AD5324BRMZ-REEL7

2.5 V至5.5 V ， 500 μA ，四路电压输出8位/ 10位/ 12位DAC，采用10引脚封装 2.5 V to 5.5 V, 500 μA, Quad Voltage Output 8-/10-/12-Bit DACs in 10-Lead Packages

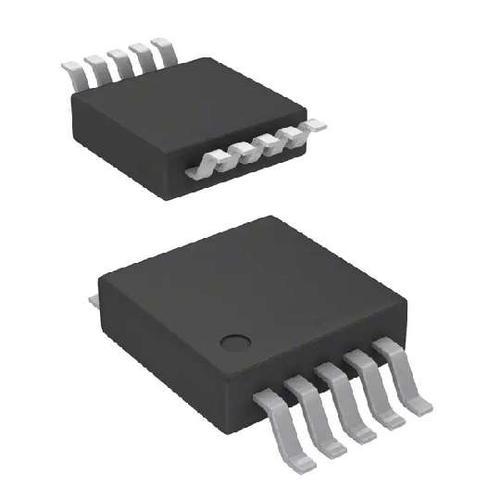

12 位 4 10-MSOP

得捷:
IC DAC 12BIT V-OUT 10MSOP

立创商城:
AD5324BRMZ-REEL7

艾睿:
Converting digital signals to analog can easily be handled using this AD5324BRMZ-REEL7 from Analog Devices. This device is based on Resistor-String architecture. This device&s;s digital interface is serial 3-wire, spi, qspi, microwire. It has a voltage output. This DAC has a resolution of 12bit. This DAC has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device uses a single power supply.

安富利:
The AD5324 is quad 8-, 10-, and 12-bit buffered voltage output DACs in 10-lead MSOP and 10-lead LFCSP packages that operate from a single 2.5 V to 5.5 V supply, consuming 500 μA at 3 V. Their on-chip output amplifiers allow rail-to-rail output swing to be achieved with a slew rate of 0.7 V/μs. A 3-wire serial interface is used; it operates at clock rates up to 30 MHz and is compatible with standard SPI, QSPI, MICROWIRE, and DSP interface standards.The references for the four DACs are derived from one reference pin. The outputs of all DACs can be updated simultaneously using the software LDAC function. The parts incorporate a power-on reset circuit, and ensure that the DAC outputs power up to 0 V and remains there until a valid write takes place to the device. The parts contain a power-down feature that reduces the current consumption of the device to 200 nA @ 5 V 80 nA @ 3 V.The low power consumption of these parts in normal operation makes them ideally suited to portable battery-operated equipment. The power consumption is 3 mW at 5 V, 1.5 mW at 3 V, reducing to 1 μW in power-down mode.

Chip1Stop:
DAC 4-CH Resistor-String 12-bit 10-Pin MSOP T/R

Verical:
DAC 4-CH Resistor-String 12-bit 10-Pin MSOP T/R

罗切斯特:
DAC 4-CH Resistor-String 12-bit 10-Pin MSOP T/R

Win Source:
IC DAC 12BIT QUAD VOUT 10MSOP
