高性能, ISM频段FSK / ASK收发器IC High Performance, ISM Band, FSK/ASK Transceiver IC
GENERAL DESCRIPTION
The ADF7020 is a low power, highly integrated FSK/ASK/OOK transceiver designed for operation in the license-free ISM bands at 433 MHz, 868 MHz, and 915 MHz, as well as the proposed Japanese RFID band at 950 MHz.
FEATURES
Low power, low IF transceiver
Frequency bands
431 MHz to 478 MHz
862 MHz to 956 MHz
Data rates supported
0.15 kbps to 200 kbps, FSK
0.15 kbps to 64 kbps, ASK
2.3 V to 3.6 V power supply
Programmable output power
−16 dBm to +13 dBm in 0.3 dBm steps
Receiver sensitivity
−119 dBm at 1 kbps, FSK
−112 dBm at 9.6 kbps, FSK
−106.5 dBm at 9.6 kbps, ASK
Low power consumption
19 mA in receive mode
26.8 mA in transmit mode 10 dBm output
−3 dBm IIP3 in high linearity mode
On-chip VCO and fractional-N PLL
On-chip 7-bit ADC and temperature sensor
Fully automatic frequency control loop AFC compensates for ±25 ppm crystal at 862 MHz to 956 MHz or ±50 ppm at 431 MHz to 478 MHz
Digital RSSI
Integrated Tx/Rx switch
Leakage current of <1 µA in power-down mode
APPLICATIONS
Low cost wireless data transfer
Remote control/security systems
Wireless metering
Keyless entry
Home automation
Process and building control
Wireless voice
频率 431MHz ~ 478MHz,862MHz ~ 956MHz
电源电压DC 2.30V min
供电电流 19.0 mA
数据速率 200 kbps
输出功率 13 dBm
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 48

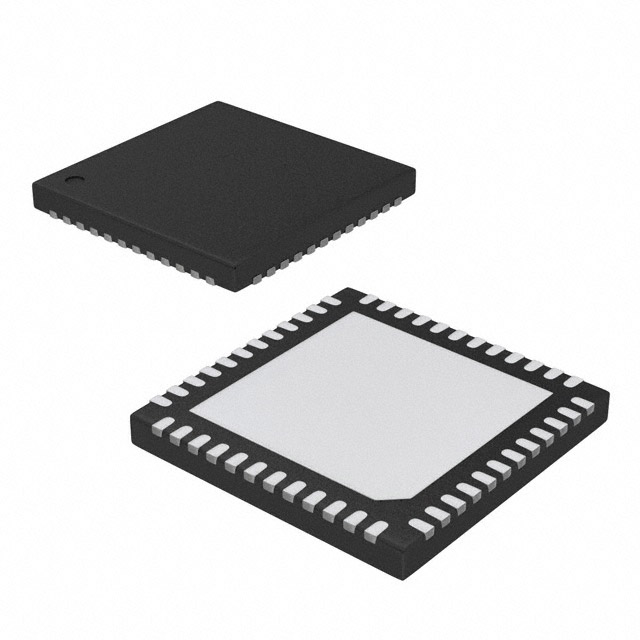

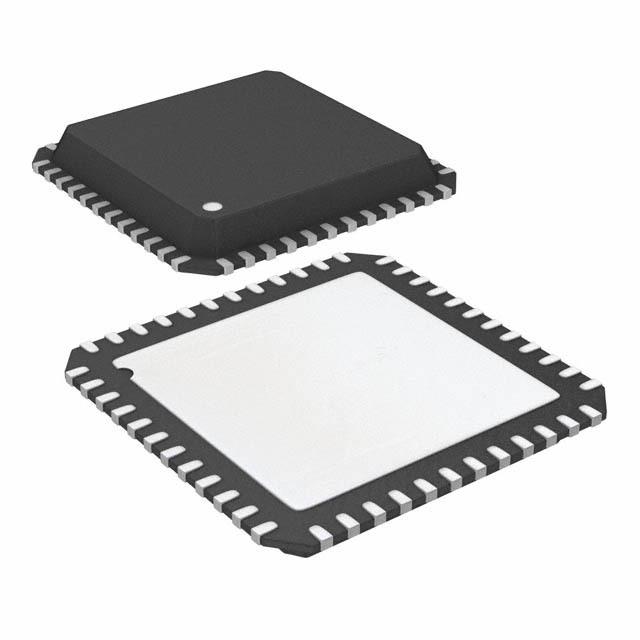

封装 LFCSP-48
长度 7 mm
宽度 7 mm
高度 0.83 mm
封装 LFCSP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Clinical Monitoring, Life Sciences & Medical Instrumentation, Building Control and Automation, Heating Ventilation and Air Conditioning, ECG Patient Monitoring, Healthcare, Building Technology, Spectrometer
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
