ADG704BRMZ-REEL7

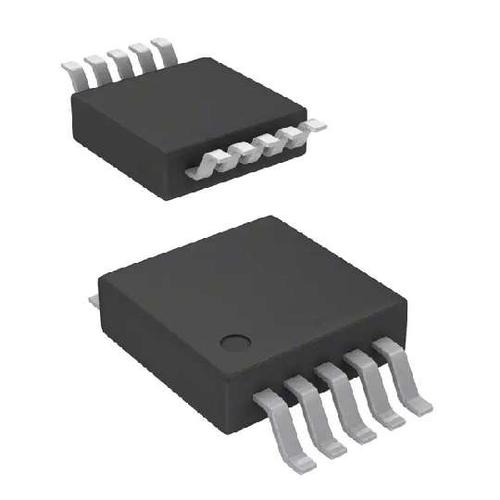

ANALOG DEVICES  ADG704BRMZ-REEL7  芯片, 模拟多路复用器, 4 X 1, MSOP-10

Product Details

The ADG704 is a CMOS analog multiplexer, comprising four single channels. This multiplexer is designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents and high bandwidths. The on resistance profile is very flat over the full analog signal range. This ensures excellent linearity and low distortion when switching audio signals. Fast switching speed also makes the part suitable for video signal switching.

### Features and Benefits

.

+1.8 V to +5.5 V Single Supply

.

2.5 Ω Typ On Resistance

.

Low On-Resistance Flatness

.

–3 dB Bandwidth >200 MHz

.

Rail-to-Rail Operation

.

10-Lead µSOIC Package

.

Fast Switching Times

tON 20 ns

tOFF 13 ns

.

Typical Power Consumption <0.01 µW

.

TTL/CMOS Compatible
