宽带合成器与集成的VCO Wideband Synthesizer with Integrated VCO
Product Details
The ADF4350 allows implementation of fractional-N or integer-N phase-locked loop PLL frequency synthesizers if used with an external loop filter and external reference frequency.
The ADF4350 has an integrated voltage controlled oscillator VCO with a fundamental output frequency ranging from 2200 MHz to 4400 MHz. In addition, divide-by-1/2/4/8 or 16 circuits allow the user to generate RF output frequencies as low as 137.5 MHz. For applications that require isolation, the RF output stage can be muted. The mute function is both pin- and software-controllable. An auxiliary RF output is also available, which can be powered down if not in use.
Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.
Applications
### Features and Benefits
输出接口数 4
供电电流 27 mA
电路数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 32

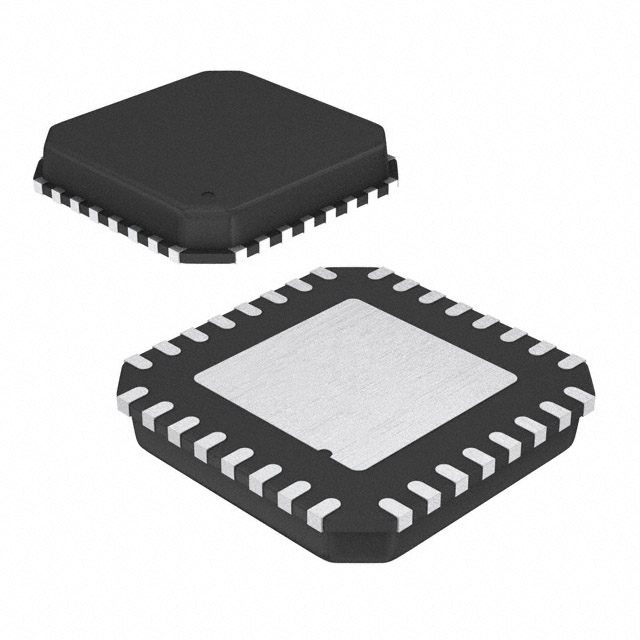

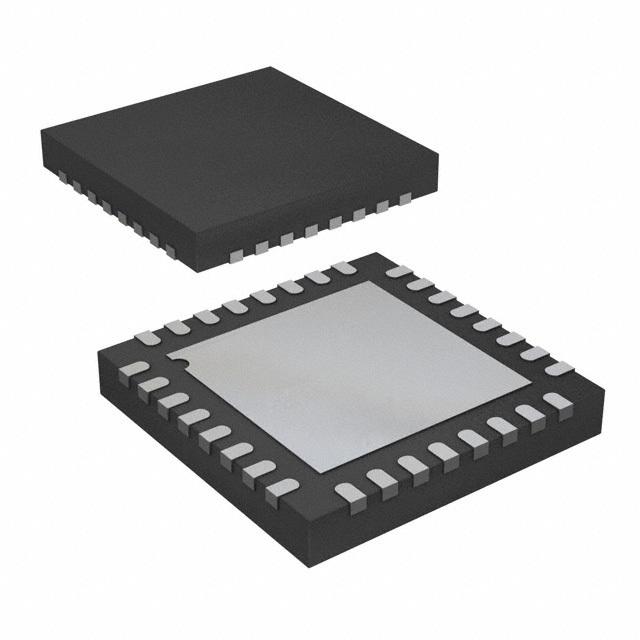

封装 LFCSP-32
长度 5 mm
宽度 5 mm
高度 0.83 mm
封装 LFCSP-32
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Security and Surveillance, Scanning Equipment
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADF4350BCPZ-RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADF4350BCPZ 亚德诺 | 完全替代 | ADF4350BCPZ-RL7和ADF4350BCPZ的区别 |
ADF4350BCPZ-RL 亚德诺 | 功能相似 | ADF4350BCPZ-RL7和ADF4350BCPZ-RL的区别 |
