AQW210AZ

AQV Photomos 系列 0.12 A 350 V 35 Ohm 表面贴装 单通道 固态继电器 - DIP-6

Compact DIP8-pin type of 60V to 600V load voltage

FEATURES

1\. Compact 8-pin DIP size

The device comes in a compact W 6.4 × L 9.78 ×H 3.9 mm W .252×L .385×H .154 inch,8-pin DIP size through hole terminal type.

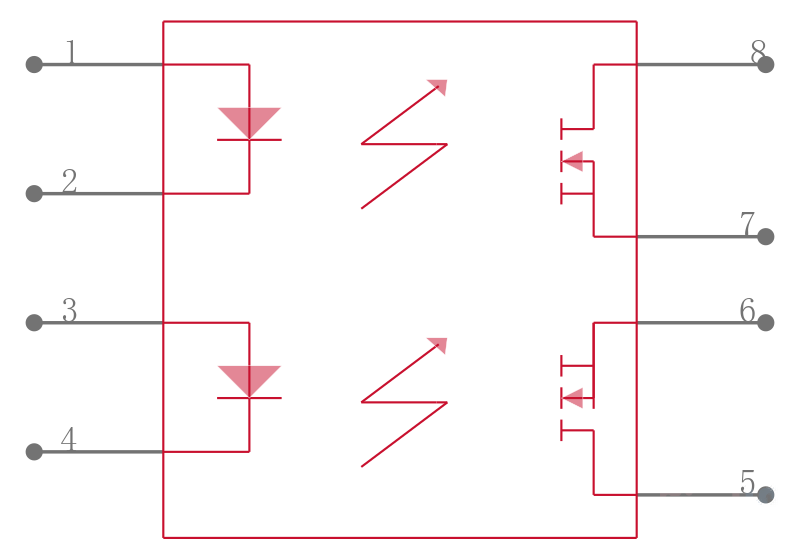

2\. Applicable for 2 Form A use as well as two independent 1 Form A use

3\. Controls low-level analog signals

PhotoMOS feature extremely low closed circuit offset voltage to enable control of low-level analog signals without distortion.

4\. High sensitivity and high speed response

Can control max. 0.6 A load current with 5 mA input current. Fast operation speed of typ. 0.65 ms AQW212.

5\. Low-level off state leakage current of max. 1 µA

6\. Wide variation of load voltage 60V to 600V
