AQV212SX

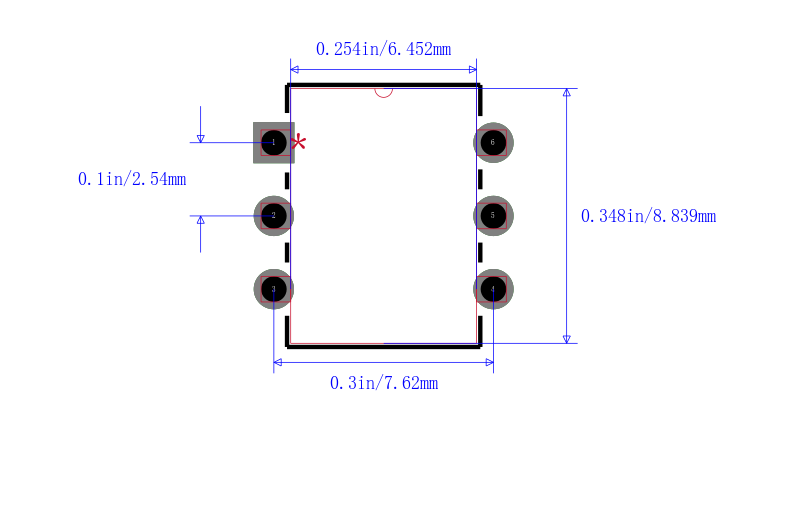

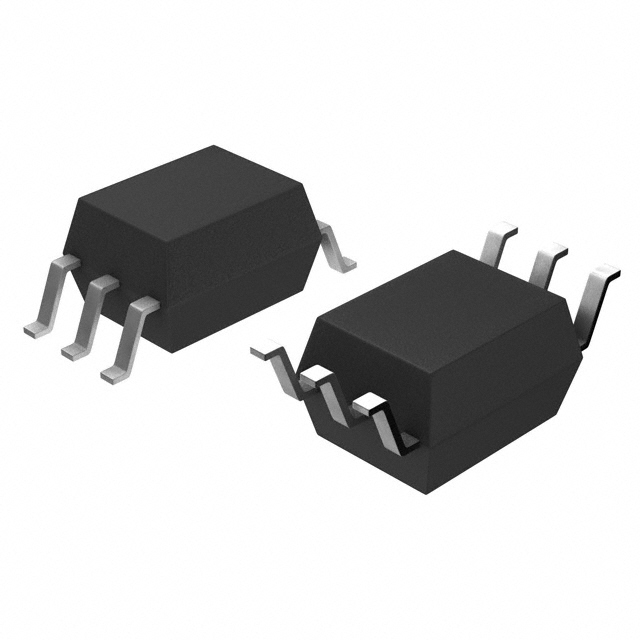

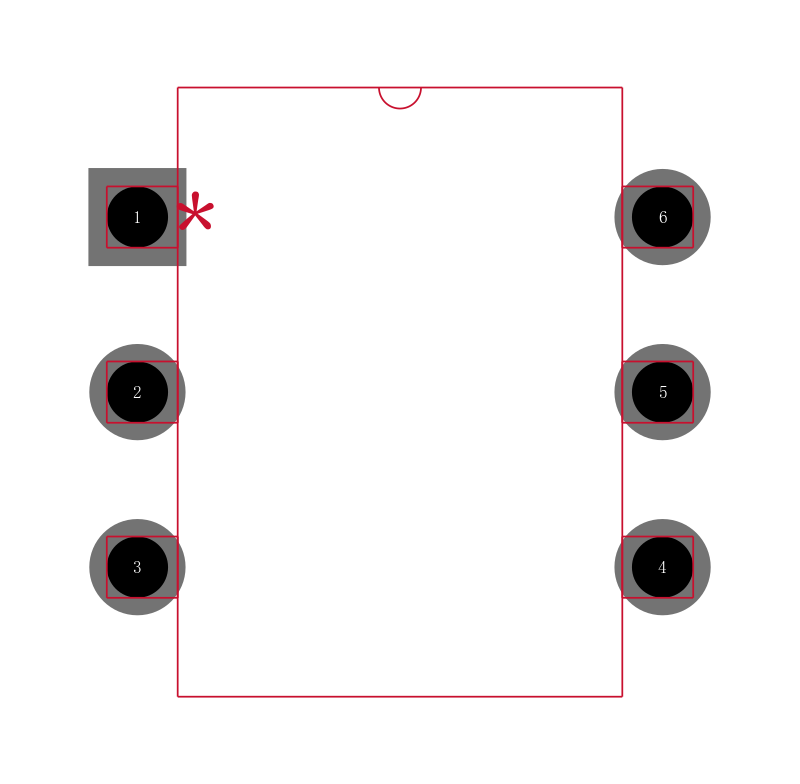

AQV Photomos 系列 6 引脚 SOIC-6 60 V 0.5 A 0.83 Ohm 单通道 固态继电器

Controls low-level input signals.

Controls load voltage 60V to 600V.

FEATURES

1\. Controls low-level analog signals PhotoMOS relays feature extremely low closed-circuit offset voltage to enable control of low-level analog signals without distortion.

2\. Control with low-level input signals

3\. Controls various types of loads such as relays, motors, lamps and solenoids.

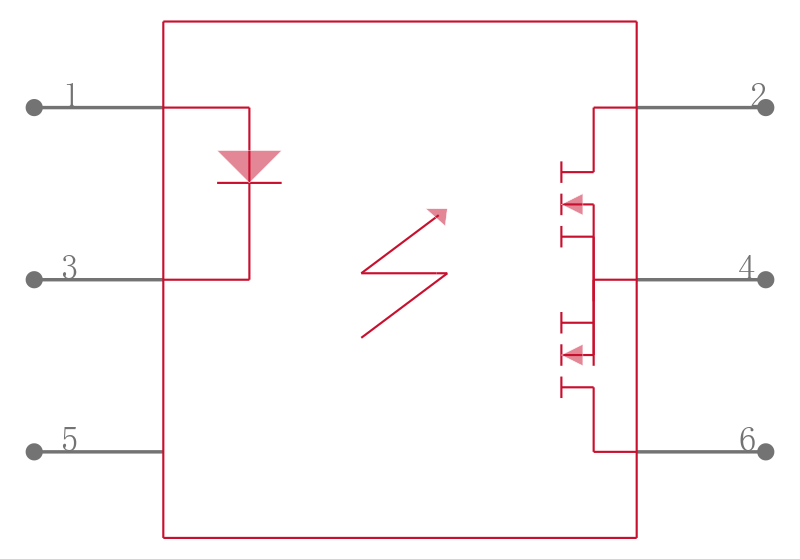

4\. Optical coupling for extremely high isolation Unlike mechanical relays, the PhotoMOS relay combines LED and optoelectronic device to transfer signals using light for extremely high isolation.

5\. Eliminates the need for a counter electromotive force protection diode in the drive circuits on the input side

6\. Stable on resistance

7\. Low-level off state leakage current

8\. Eliminates the need for a power supply to drive the power MOSFET A power supply used to drive the power MOSFET is unnecessary because of the built-in optoelectronic device. This results

in easy circuit design and small PC board area.

9\. Low thermal electromotive force Approx. 1 µV

TYPICAL APPLICATIONS

• High-speed inspection machines

• Telephone equipment

• Data communication equipment

• Computer
