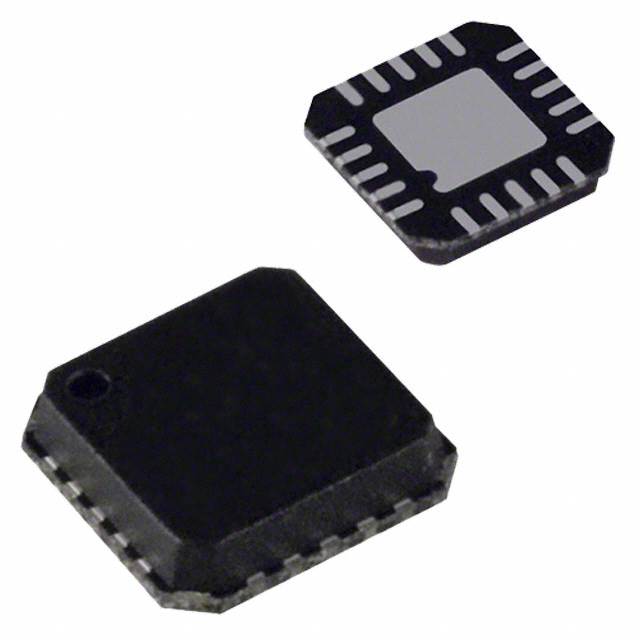

ADG3304BCPZ-REEL7

低电压， 1.15 V至5.5 V ， 4通道，双向逻辑电平转换器 Low Voltage, 1.15 V to 5.5 V, 4-Channel, Bidirectional Logic Level Translator

GENERAL DESCRIPTION

The ADG3304 is a bidirectional logic level translator that contains four bidirectional channels. It can be used in multivoltage digital system applications, such as data transfer, between a low voltage digital signal processing controller and a higher voltage device using SPI and MICROWIRE interfaces. The internal architecture allows the device to perform bidirectional logic level translation without an additional signal to set the direction in which the translation takes place.

FEATURES

  Bidirectional level translation

  Operates from 1.15 V to 5.5 V

  Low quiescent current < 5 µA

  No direction pin

  Qualified for automotive applications

APPLICATIONS

  SPI®, MICROWIRE™ level translation

  Low voltage ASIC level translation

  Smart card readers

  Cell phones and cell phone cradles

  Portable communications devices

  Telecommunications equipment

  Network switches and routers

  Storage systems SAN/NAS

  Computing/server applications

  GPS

  Portable POS systems

  Low cost serial interfaces
