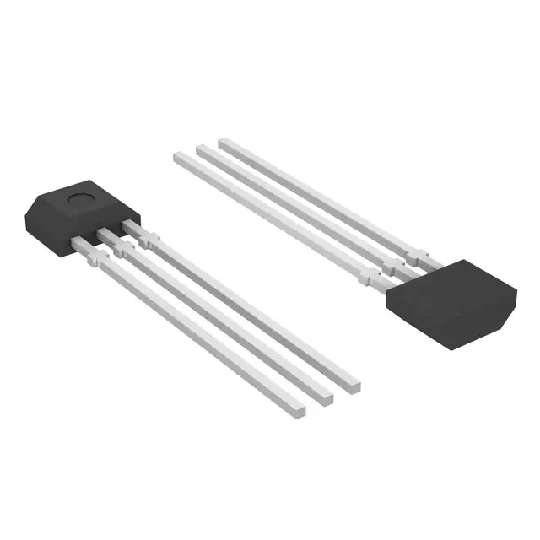

A1302EUA-T

Hall Effect Sensor 10mA 5V 3Pin Ultra Mini SIP Bulk

Description

The A1301 and A1302 are continuous-time, ratiometric, linear Hall-effect sensors. They are optimized to accurately provide a voltage output that is proportional to an applied magnetic field. These devices have a quiescent output voltage that is 50% of the supply voltage. Two output sensitivity options are provided: 2.5 mV/G typical for the A1301, and 1.3 mV/G typical for the A1302.

Features and Benefits

▪ Low-noise output

▪ Fast power-on time

▪ Ratiometric rail-to-rail output

▪ 4.5 to 6.0 V operation

▪ Solid-state reliability

▪ Factory-programmed at end-of-line for optimum performance

▪ Robust ESD performance
