AD9530BCPZ-REEL7

时钟发生器及支持产品 12 Bit 100 MSPS A-D Converter

Product Details

The AD9530 is a fully integrated PLL and distribution supporting, clock cleanup, and frequency translation device for 40 Gbps/ 100 Gbps OTN applications. The internal PLL can lock to one of two reference frequencies to generate four discrete output frequencies up to 2.7 GHz.

The AD9530 features an internal 5.11 GHz to 5.4 GHz, ultralow noise voltage controlled oscillator VCO. All four outputs are individually divided down from the internal VCO using two high speed VCO dividers the Mx dividers and four individual 8-bit channel dividers the Dx dividers. The high speed VCO dividers offer fixed divisions of 2, 2.5, 3, and 3.5 for wide coverage of possible output frequencies. The AD9530 is configurable for loop bandwidths <15 kHz to attenuate reference noise.

The AD9530 is available in a 48-lead LFCSP and operates from a single 2.5 V typical supply voltage.

The AD9530 operates over the extended industrial temperature range of −40°C to +85°C.

**Applications **

.

40 Gbps/100 Gbps optical transport network OTN line side clocking

.

Clocking of high speed analog-to-digital converters ADCs and digital-to-analog converters DACs

.

Data communications

### Features and Benefits

.

Fully integrated, ultralow noise phase-locked loop PLL

.

4 differential, 2.7 GHz common-mode logic CML outputs

.

2 differential reference inputs with programmable internal termination options

.

<232 fs rms absolute jitter 12 kHz to 20 MHz with a non-ideal reference and 8 kHz loop bandwidth

.

<100 fs rms absolute jitter 12 kHz to 20 MHz with an 80 kHz loop bandwidth and low jitter input reference clock

.

Supports low loop bandwidths for jitter attenuation

.

Manual switchover

.

Single 2.5 V typical supply voltage

.

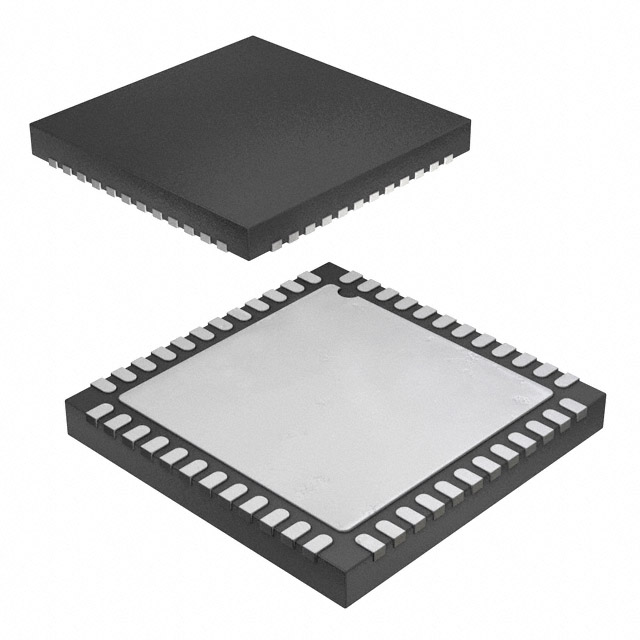

48-lead, 7 mm × 7 mm LFCSP
