APXE6R3ARA121ME61G

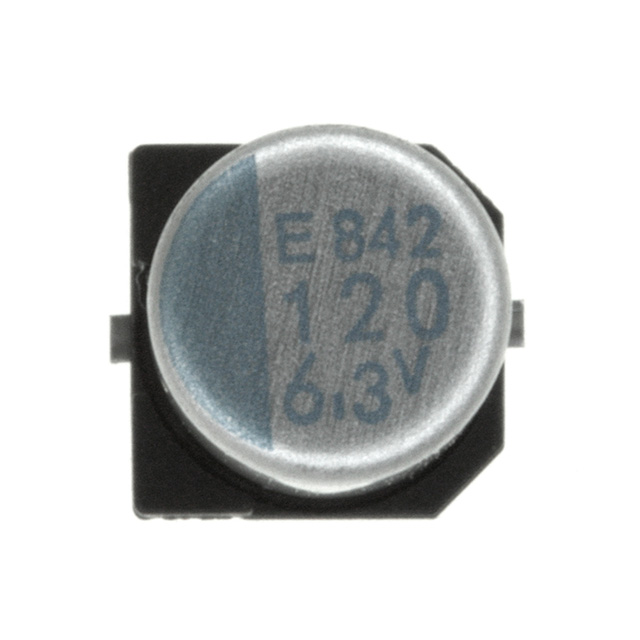

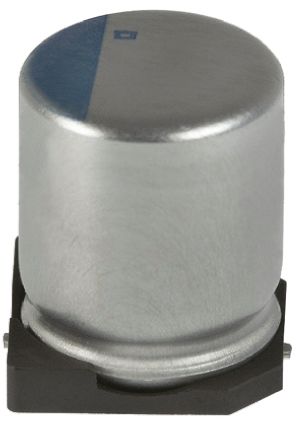

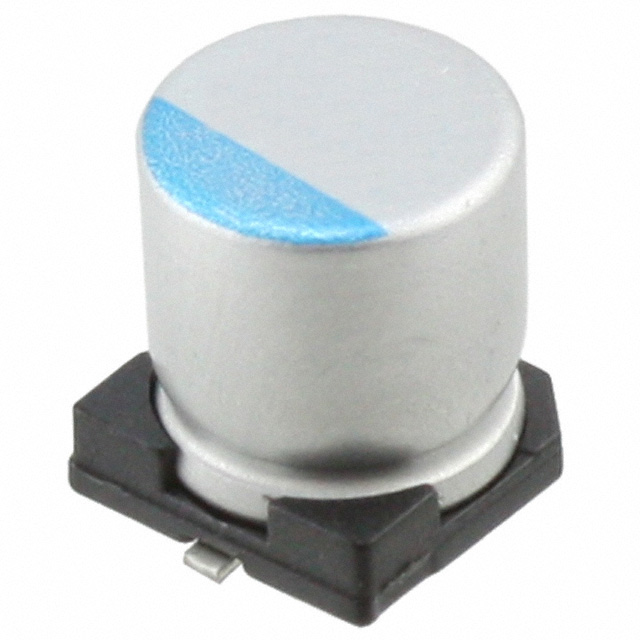

APXE6R3ARA121ME61G图片1
APXE6R3ARA121ME61G图片2
APXE6R3ARA121ME61G图片3
APXE6R3ARA121ME61G图片4
APXE6R3ARA121ME61G图片5
APXE6R3ARA121ME61G图片6
APXE6R3ARA121ME61G图片7
APXE6R3ARA121ME61G图片8
APXE6R3ARA121ME61G图片9
APXE6R3ARA121ME61G图片10
APXE6R3ARA121ME61G概述

NP-CAP PXE 系列超低 ESR、阻抗和高耐热性,使用导电聚合物作为电解液。 适用于直流-直流转换器、电压调节器和去耦应用。 无卤素### 固体贴片 105°C电容容差 | 20 % ---|--- 工作温度 | -40 至 +105°C 耗散因子 | 小于或等于 0.06(120Hz,20°C) 冲击电压 | 额定工作电压 x 1.25(15 至 35°C) 预期寿命 @ 105°C | 1000 小时

NP-CAP PXE 系列

超低 ESR、阻抗和高耐热性,使用导电聚合物作为电解液。 适用于直流-直流转换器、电压调节器和去耦应用。 无卤素


得捷:
CAP ALUM POLY 120UF 20% 6.3V SMD


欧时:
Al SMD Capacitor series PXE 6.3V 120uF


贸泽:
Aluminum Organic Polymer Capacitors 120uF 6.3 Volt


艾睿:
By adding one of United Chemi-con&s;s APXE6R3ARA121ME61G conductive polymer aluminum solid capacitors to your circuit, you can ensure safe operation of the ICs and other components from unexpected loads. It can withstand a voltage of 6.3 VDC. It has 2 terminals. Its leakage current is 151@2Min μA. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. This product is 5.8 mm tall with a diameter of 5 mm. It has a tolerance of 20%.


Chip1Stop:
Cap Aluminum 120uF 6.3V 20% 5 X 5.8mm SMD 0.024 Ohm 2500mA 2000h 105 C T/R


Verical:
Cap Aluminum Polymer 120uF 6.3VDC 20% 5 X 5.8mm SMD 0.024 Ohm 2500mA 15000h 105C T/R


MASTER:
Cap Aluminum Polymer 120uF 6.3VDC 20% 5 X 5.8mm SMD 0.024 Ohm 2500mA 15000h 105°C T/R


Online Components:
Cap Aluminum Polymer 120uF 6.3VDC 20% 5 X 5.8mm SMD 0.024 Ohm 2500mA 2000h 105°C T/R


Electro Sonic:
Cap Aluminum Polymer 120uF 6.3VDC 20% 5 X 5.8mm SMD 0.024 Ohm 2500mA 15000h 105°C T/R


APXE6R3ARA121ME61G中文资料参数规格
技术参数

额定电压DC 6.3 V

电容 120 µF

等效串联电阻ESR 0.024 Ω

容差 ±20 %

纹波电流 2500 mA

纹波电流低频 2.5A @100kHz

工作温度Max 105 ℃

工作温度Min -55 ℃

额定电压 6.3 V

封装参数

安装方式 Surface Mount

封装 SMD

外形尺寸

长度 5.8 mm

宽度 5.3 mm

高度 5.8 mm

封装 SMD

物理参数

工作温度 -55℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

寿命(小时) 2000 h

制造应用 通用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

HTS代码 8532220020

数据手册

APXE6R3ARA121ME61G引脚图与封装图

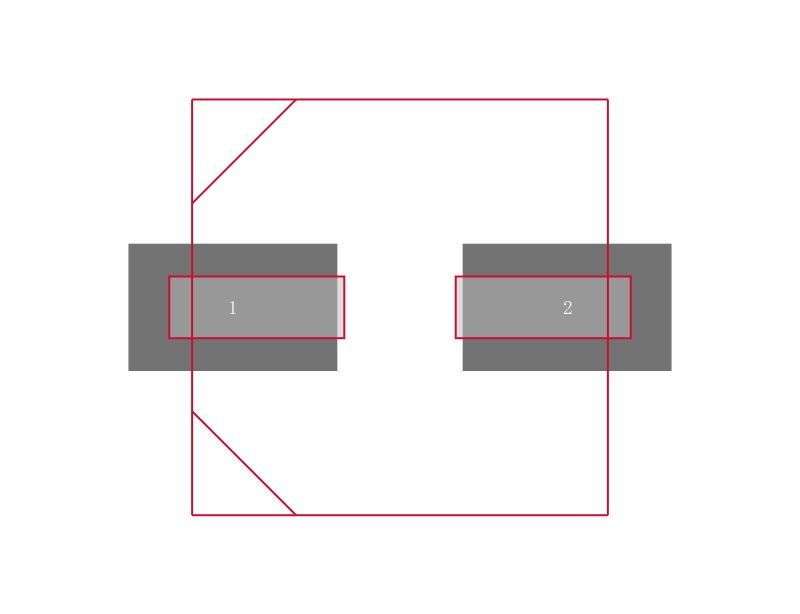

APXE6R3ARA121ME61G引脚图

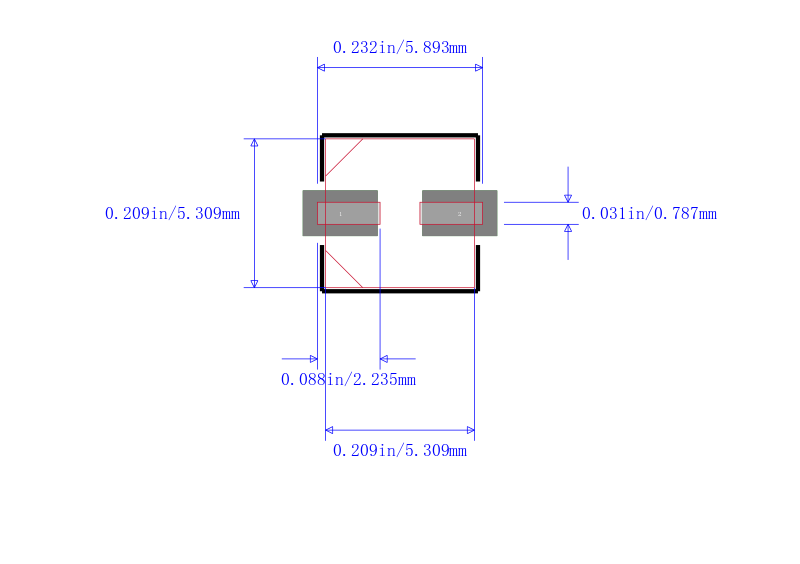

APXE6R3ARA121ME61G封装图
APXE6R3ARA121ME61G封装焊盘图
在线购买APXE6R3ARA121ME61G
型号: APXE6R3ARA121ME61G
制造商: Chemi-Con 贵弥功
描述:NP-CAP PXE 系列 超低 ESR、阻抗和高耐热性,使用导电聚合物作为电解液。 适用于直流-直流转换器、电压调节器和去耦应用。 无卤素 ### 固体贴片 105°C 电容容差 | 20 % ---|--- 工作温度 | -40 至 +105°C 耗散因子 | 小于或等于 0.06(120Hz,20°C) 冲击电压 | 额定工作电压 x 1.25(15 至 35°C) 预期寿命 @ 105°C | 1000 小时
