AC240100

PICtail Plus 扩展板

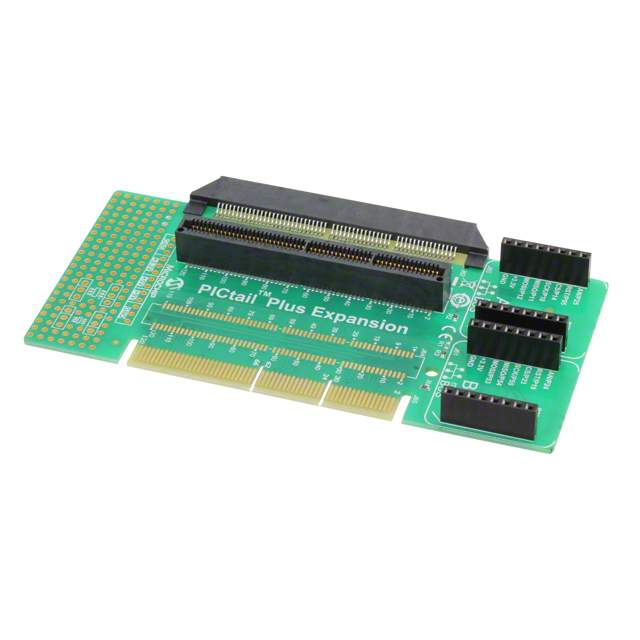

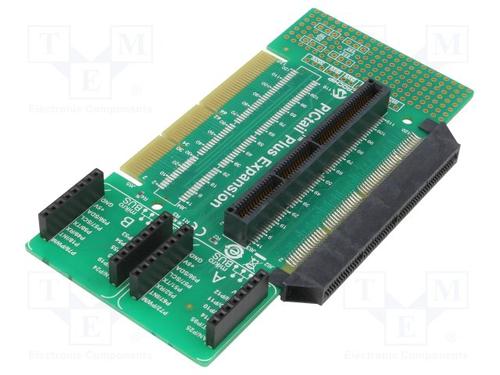

The from is a PICtail Plus expansion board. PICtail Plus expansion board is an accessory that enables interfacing of vertical PICtail Plus daughter cards to Explorer 16/32 development board. The expansion board supporting vertical PICtail Plus connectors helps in attaching various daughter cards for additional functionality. The expansion board supports the New Explorer 16/32 board as well as the Classic Explorer 16 board. The expansion board also features a Prototyping area and two MikroElektronika mikroBUS interfaces. mikroBUS interface facilitates the addition of Click boards to various application prototypes using the classic Explorer 16 and Explorer 16/32 development board.

.

Offers backward compatibility with existing PICtail Plus daughter cards on Explorer 16/32 board

.

2 x MikroElektronika mikroBUS interface enables classic Explorer 16 users to utilize click boards

.

Prototyping area
