AB6Q-M1P-G

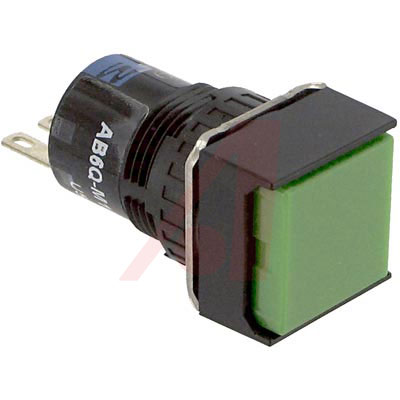

AB6Q-M1P-G图片1
AB6Q-M1P-G图片2
AB6Q-M1P-G图片3
AB6Q-M1P-G概述

Switch Push Button SPDT Square Button 1A 250VAC 250VDC Momentary Contact Quick Connect/Solder Panel Mount

Key features of the A6 series switches and pilot lights include:

* 16mm 5/8" mounting hole

* LED illumination

* Compact design saves space

* Momentary, Maintained, Selectors, and E-Stops

* Gold-clad Silver contacts for reliable low level switching

* Snap action contacts

* IP40 dustproof or IP65 oiltight versions


Allied Electronics:
Switch; NON-ILLUM.OILTIGHT ENCLOSUREIP65Momentary ACTION; SQUARE LENS; SPDT; GREEN


Chip1Stop:
Switch Push Button SPDT Square Button 1A 250VAC 250VDC Momentary Contact Quick Connect/Solder Panel Mount


Verical:
Switch Push Button N.O./N.C. SPDT Square Button 1A 250VAC 250VDC Momentary Contact Quick Connect/Solder Panel Mount


MASTER:
Switch Push Button N.O./N.C. SPDT Square Button 1A 250VAC 250VDC Momentary Contact Quick Connect/Solder Panel Mount


Electro Sonic:
Switch Push Button N.O./N.C. SPDT Square Button 1A 250VAC 250VDC Momentary Contact Quick Connect/Solder Panel Mount


AB6Q-M1P-G中文资料参数规格
技术参数

额定电压DC 5.00 V

额定电流 1 A

绝缘电阻 ≥100 MΩ

触点类型 SPDT

接触电阻 ≤50 MΩ

工作温度Max 55 ℃

工作温度Min -25 ℃

额定电压 120 VAC

额定电压DC Max 250 V

额定电压AC Max 250 V

接触电阻Max 50 mΩ

封装参数

安装方式 Panel, Quick Connect, Solder

物理参数

工作温度 -25℃ ~ 55℃

符合标准

RoHS标准 RoHS Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536509031

数据手册

在线购买AB6Q-M1P-G
型号: AB6Q-M1P-G
制造商: IDEC
描述:Switch Push Button SPDT Square Button 1A 250VAC 250VDC Momentary Contact Quick Connect/Solder Panel Mount
