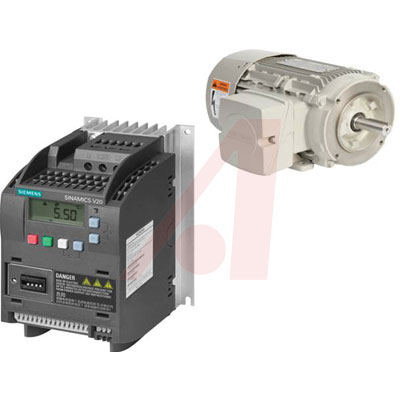

AC Drive; VFD; Combination; MTRDRV; 1; 1800; GPAV20; 460; 143T; 1.4A
The line of SIMOTICS GP100A aluminum frame motors is not an evolution in motor design, but a total revolution. This distinctive line of SIMOTICS NEMA-frame motors is based upon 14 decades of Siemens motor design leadership, manufacturing expertise and application knowledge — combined with innovative and elegant new technologies to provide maximum value.
The GP100A precision die-cast aluminum frame with removable feet represents a major step forward in motor design innovation. SIMOTICS GP100A forms a complete system to reduce your total cost of operation. These aluminum frame motors are a line of motors that offers the ultimate in rugged construction, cool operation, high-performance and application flexibility with power range from 1–20 hp.
**Features:**
* Epoxy Enamel-Coated Cast Aluminum Frame Provides Optimum Heat Dissipation
* Cooling Fan and Fan Cover for Optimal Air Flow
* Non-Hygroscopic Class-F insulation System with NEMA Class-B Temperature Rise
* Windings Are Corona Inception Voltage CIV Certified to Mitigate Voltage Spikes
* Condensation drain Holes on the Motor Frame and the end of the Motor
* Oversized Polyurea-Based Lubrication for Life Bearings
* Removable Feet Allow for F1, F2 and F3 Mounting
* C-Flange or D-Flange Construction
* Permanently Marked Leads
* Oversized Cast-Iron Conduit Box that Is Diagonally Split, Neoprene Gasketed and Rotatable in 90° Increments
**Specifications:**
* 1800 RPM Motor
* 143T Motor Frame
* 1.4 FLA Motor
* Drive Frame Size: A
* 2.2 Amps Drive
* RS485/USS/Modbus
