AR25-N02H-Z概述

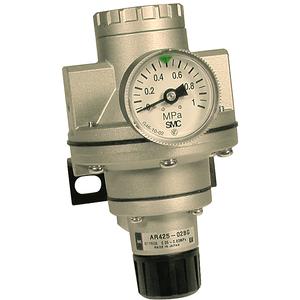

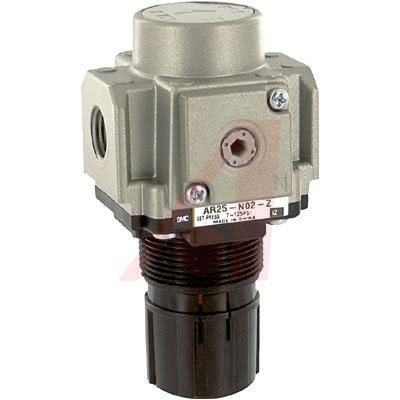

SMC AR25-N02H-Z regulator, modular, AR MASS PRO

* Relieving Type Diaphragm Regulator

* Locking Adjustment Knob Prevents Accidental Setting Changes

* Operating Pressure: 150 psi Adjustment Range: 7 Up to 125 psi

* –1 and –1Z Have 3-29 psi Setting

* Name Plate and Caution Plate for Bowl In Imperial Units psi, °F

Allied Electronics:
Regulator; Modular; 1/4NPT ports; panelmount

AR25-N02H-Z中文资料参数规格

外形尺寸

长度 55 mm

高度 101 mm

其他

Body Size 25

Height 3.976" 101mm

Length 2.165" 55mm

Port Size, Gauge 1/8"

Pressure, Operating 145.04 PSI 1 MPa

Proof Pressure 217.6 PSI 1.5 MPa

Series AR25 Series

Size, Port 1/4" NPT

Temperature, Ambient -5 to 60°C

Thread Type NPT

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买AR25-N02H-Z

型号： AR25-N02H-Z

制造商： SMC

描述：SMC AR25-N02H-Z regulator, modular, AR MASS PRO
