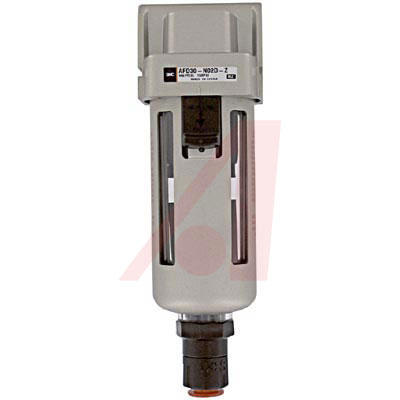

Body Size: 30in. Diameter: 53mm Height: 129mm Material, Bowl: Polycarbonate Pressure, Operating: 1.0 MPa Max. Pr...
The exhaust port for auto drain comes with φ 3⁄8" One-Touch fitting applicable to: AF30-60, AFM30/40 and AFD30/40. Applicable tube O.D. for auto drain connection should be φ 3⁄8" for NPT port sizes. The AFM20 with auto drain uses a M5 × 0.8 thread. The new RoHS-Compliant versions of all AF/AFD/AFM mist separators are marked with a suffix of -A.
**Features:**
* 0.01 Micron Particle Filter with Oil Removal to 0.008 ppm
* Operating Pressure: 150 psi
* Large Capacity Bowl with Autodrain
* Use AF And AFM as Pre-Filter for Best Element Life
* Name Plate and Caution Plate for Bowl in Imperial Units psi, °F
* Other Sizes Available
高度 129 mm
直径 53.0 mm
Body Size 30 in. in.
Brand/Series AFD Series
Diameter 53 mm mm
Flow Rate 240 l/min
For Use With AF Series
Height 5.079" 129mm
Material Aluminum Die Cast
Material, Bowl Polycarbonate
Pressure, Operating 1.0 MPa Max.
Proof Pressure 1.5 MPa MPa
Size, Port 1⁄4 " NPT " NPT
Temperature, Ambient -5 to +60 °C °C
Thread Type NPT
Type Mist Separator
RoHS标准 RoHS Compliant
