ALR-LC-120

ALR-LC-120图片1
ALR-LC-120图片2
ALR-LC-120图片3
ALR-LC-120图片4
ALR-LC-120图片5
ALR-LC-120图片6
ALR-LC-120概述

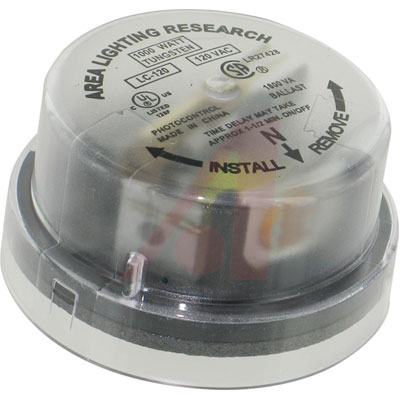

Photocontrol; Residential Grade; Locking-Type; 120V; 1000W; 1800VA; 30-45 sec.

The LC Series locking-type photocontrol offers an economical and cost-effective means of controlling residential lighting systems from dusk to dawn.
.
*

Features

* **Heavy-Duty Thermal Bi-Metal Switch

**

* **30-45 Second Time Delay**

* **UL Listed**

* **ANSI C136.10 Compliant**

* **Fail Mode is ON**

Applications

* **Driveway Lighting**

* **Patio Lighting**

* **Deck Lighting**

* **Entryway Lighting

ALR-LC-120中文资料参数规格
技术参数

额定电压 105VAC ~ 305VAC

其他

Brand/Series ALR Series

Connection Type 3-Pole locking-type with solid brass legs

Cover Material High Impact UV stablilized polycarbonate

Dimensions 2.87" Dia. x 1.61" High

Frequency 50-60 Hz

Material, Base High temperature polyester PBT

Material, Gasket Cross-linked polyethylene

Operating Point Standard 1.5 Fc ON

Sensor Type 1⁄2" Cadmium Sulfide Cds Cell

Switch Type SPST thermal bi-metallic

Temperature, Range –40°C to +65°C

Type Photocontrol

Voltage Rating 105-305 VAC

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买ALR-LC-120
型号: ALR-LC-120
描述:Photocontrol; Residential Grade; Locking-Type; 120V; 1000W; 1800VA; 30-45 sec.
