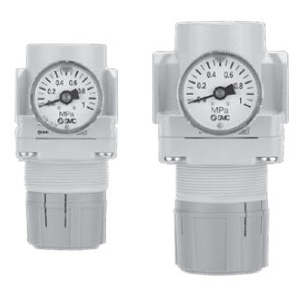

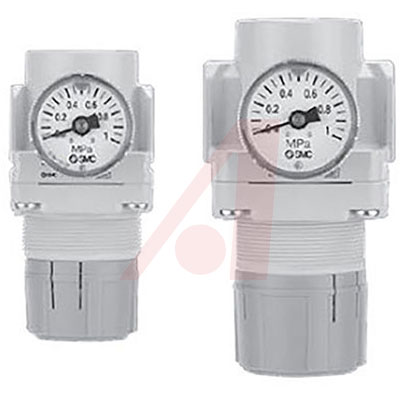

SMC AR20-N01B-Z-A regulator, modular, AR MASS PRO
* Relieving Type Diaphragm Regulator
* Locking Adjustment Knob Prevents Accidental Setting Changes
* Operating Pressure: 150 psi Adjustment Range: 7 Up to 125 psi
* –1 and –1Z Have 3-29 psi Setting
* Name Plate and Caution Plate for Bowl In Imperial Units psi, °F
Allied Electronics:
Regulator; Sz 20; 1/8 NPT Port; 1 MPa Max/.05-.7 MPa Set Press.; Panel Mnt w/Bracket
安装方式 Bracket
Body Size 20
Construction Relieving Type
Flow Type Left to Right
Fluid Type Air
Guage Port Size 1/8 in.
Measurement Units psi
Mounting Type With Bracket
Pressure, Operating 145.04 PSI 1 MPa
Proof Pressure 217.6 PSI 1.5 MPa
Series AR20 Series
Set Pressure 0.05 to 0.7 MPa
Size, Port 1/8" NPT
Temperature, Ambient -5 to 60°C
Thread Type NPT
RoHS标准 RoHS Compliant
