Drain Capacity: 23 cc Filtration Rating: 5 um Height: 201mm Length, Overall: 3.5mm Material, Bowl: Polycarbonate Pr...
* Minimizes Space and Piping Due to the Integration of the Filter and the Regulator
* Bowl Can Be Attached and Detached with One Hand
* Operating Pressure: 150 psi Adjustment Range: 7 Up to 125 psi
* Autodrain with One-Touch Fitting Standard
* Direct Operated, Relieving Style
* Name Plate and Caution Plate for Bowl in Imperial Units psi, °F
Allied Electronics:

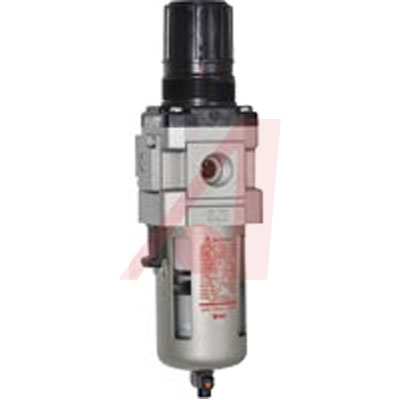

Regulator; 3/8NPT ports; float style auto drain N.O.
高度 201 mm
Body Size 30
Drain Capacity 23 cc
Drain Type Auto
Filtration Rating 5 Micron um
Guage Port Size 3/8"
Height 7.913" 201mm
Material, Bowl Polycarbonate
Port Size, Gauge 1/8 in.
Pressure, Operating 1 MPa Max.
Proof Pressure 1.5 MPa MPa
Series AW30 Series
Size, Port 3/8"
Temperature, Ambient -5 to +60 °C
Thread Type NPT
RoHS标准 RoHS Compliant
