AS2201F-01-10SA

AS2201F-01-10SA图片1
AS2201F-01-10SA图片2
AS2201F-01-10SA概述

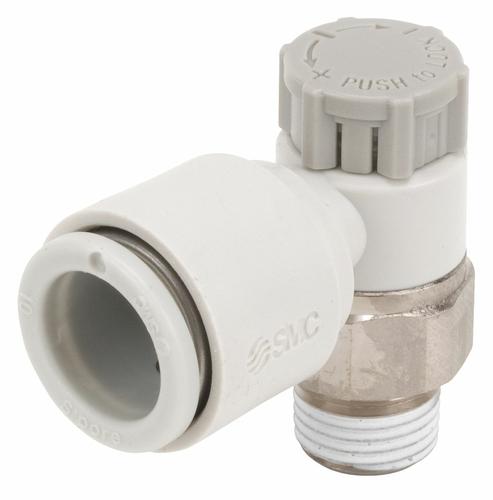

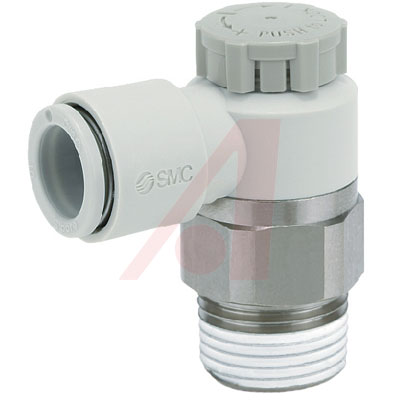

Speed controller, elbow, meter-out, 10mm one-touch x 1/8R thread w/ sealant

**Features:

**

* Provides Metered Flow Control in One Direction **

**

* Built-In Check Valve Allows Free Flow in the Other Direction**

**

* Metal Body with Threaded Ports or Molded Body with One-Touch Fittings Available**

**

* Inline or Elbow Type Available**

**

* Elbow Type Designed to Be Mounted in Cylinder Ports

* Reduce Labor Time with Push-Lock Handle

* Larger Handle for Easier Adjustment

* Newly Engineered Anchor Grip Seal for Easy Insertion and Durability

* Color Coded Release Button and Handle for Tube and Meter Type

AS2201F-01-10SA中文资料参数规格
其他

Body Size 2

Brand/Series AS Series

Meter Type Meter-Out

Pressure, Operating 0.1 to 1 MPa

Proof Pressure 1.5 MPa

Size, Port 1/8 R

Size, Thread 1⁄8 R PT

Size, Tube 10 mm

Thread Type R

Type Elbow

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买AS2201F-01-10SA
型号: AS2201F-01-10SA
制造商: SMC
描述:Speed controller, elbow, meter-out, 10mm one-touch x 1/8R thread w/ sealant
