ATS22C21S6U

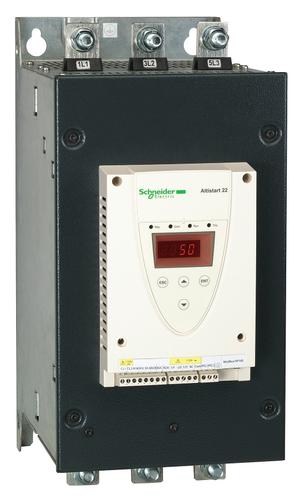

ATS22C21S6U图片1

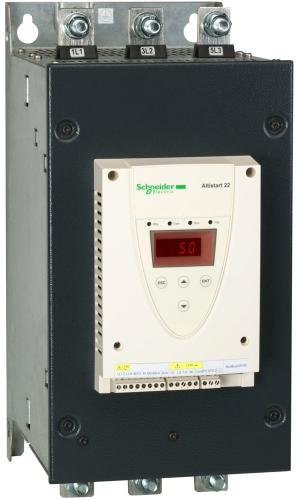

ATS22C21S6U图片2
ATS22C21S6U概述

SCHNEIDER ELECTRIC ATS22C21S6U soft start 208-600VAC 110vcntrl,210A

The Altistart™ 22 soft start/soft stop unit supports the controlled starting and stopping – via voltage and torque – of three-phase squirrel cage asynchronous motors for power ratings between 4 and 400 kW. It comes ready-to-use for standard applications with class 10 motor protection. The Altistart 22 soft start/soft stop unit contains an integrated display terminal which allows the user to change both the programming and the adjustment monitoring parameters, in order to adapt and customize the application to customer needs.

Features:

* Integrated Bypass

* Wiring 6 Terminals Instead of 12

* Easy Start Menu Guides Thru Basic Parameters

* Embedded Modbus Port

* Remote Mount Keypad for Access Outside the Enclosure

* SoMove™ PC Configuration Software

ATS22C21S6U中文资料参数规格
技术参数

额定电流 210 A

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买ATS22C21S6U
型号: ATS22C21S6U
描述:SCHNEIDER ELECTRIC ATS22C21S6U soft start 208-600VAC 110vcntrl,210A
